Component identification 80
Item Description
1
Slot 2 PCIe 3.0 x16 (full height/half length)
2
FlexibleLOM ports (Shown: 4x1Gb / Optional: 2x10Gb)
3
Video connector
4
Serial connector
5
Slot 1 PCIe 3.0 x8 (low profile)
6
iLO management port
7
USB connectors (4)
8
Power supply bay 2
9
Power supply bay 1

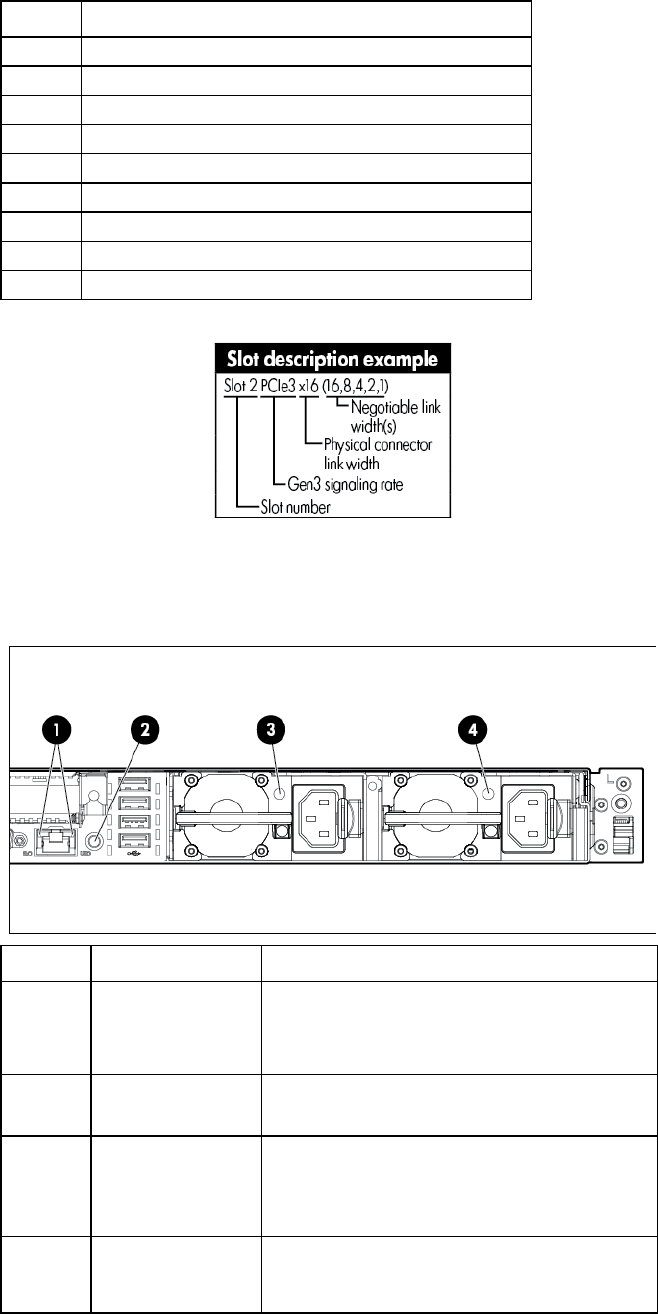

Rear panel LEDs and buttons
Item Description Status
1L
HP iLO/standard
NIC activity LED
Solid green = Activity exists.
Flashing green = Activity exists.
Off = No activity exists.
1R
HP iLO/standard
NIC link LED
Solid green = Link exists.
Off = No link exists.
2
UID button/LED Solid blue = Identification is activated.
Flashing blue = System is being managed
remotely.
Off = Identification is deactivated.
3
Power supply 2 LED Solid green = Normal
Off = One or more of the following conditions
exists:
