Component identification 81
Item Description Status
•
AC power unavailable
•
Power supply failed
•
Power supply in standby mode
•
Power supply exceeded current limit
4
Power supply 1 LED Solid green = Normal
Off = One or more of the following conditions
exists:
•
AC power unavailable
•
Power supply failed
•
Power supply in standby mode
•
Power supply exceeded current limit

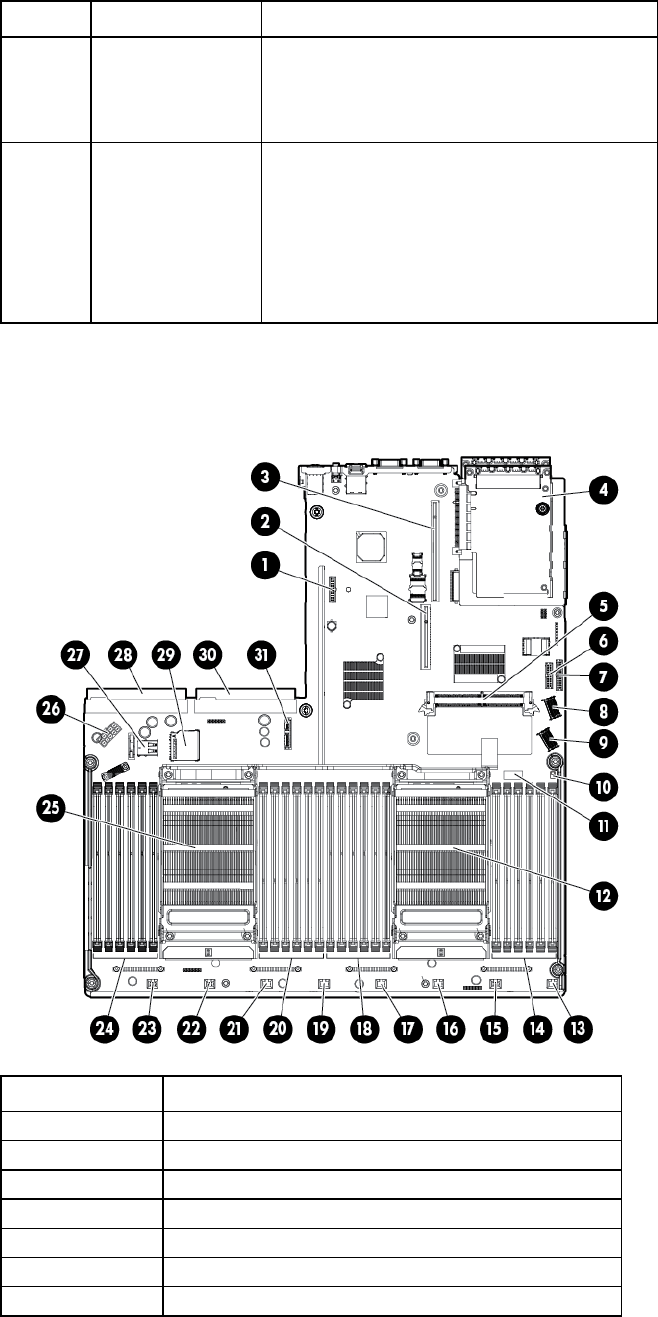

System board components
Item Description
1
TPM connector
2
PCIe x8 riser connector
3
PCIe x16 riser connector
4
FlexibleLOM
5
SAS cache module connector
6
Front LED/Power cable connector
7
Front USB/Video cable connector
