Component identification 86

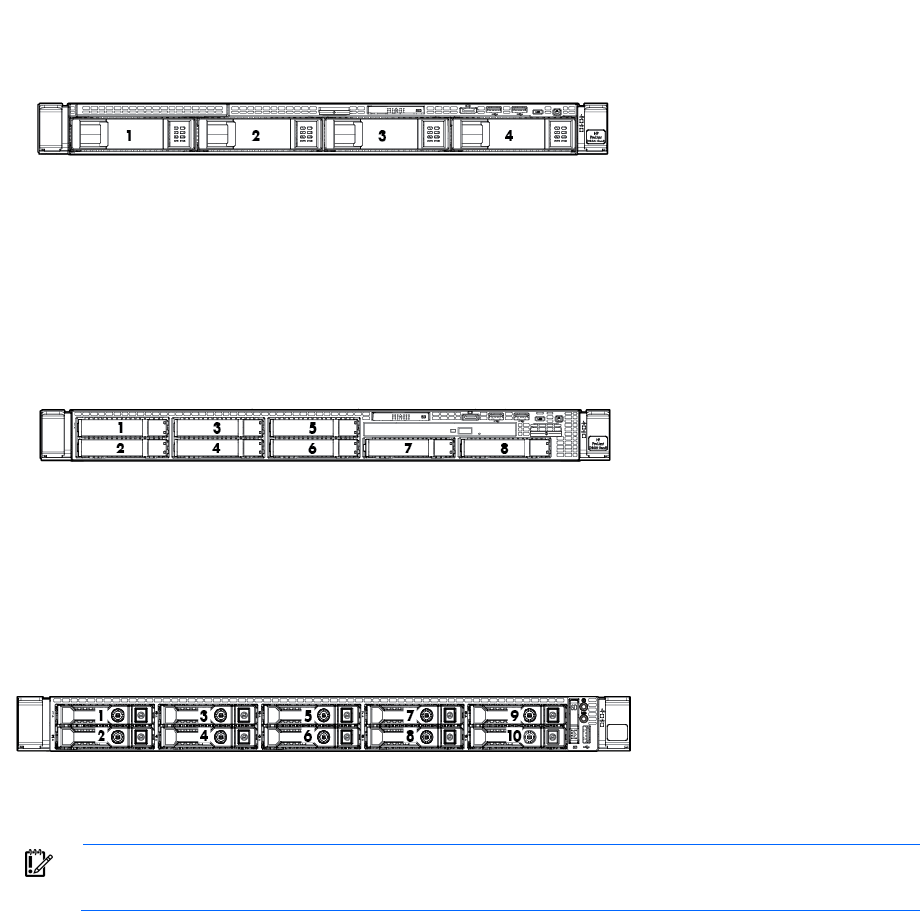

Device numbers
• 4 LFF configuration
• 8 SFF configuration
• 10 SFF configuration
IMPORTANT: A cache module is required for a 10 SFF drive cage. Drives installed in a 10 SFF
configuration do not function without a cache module.
For more information, see the server user guide.
