Component identification 88

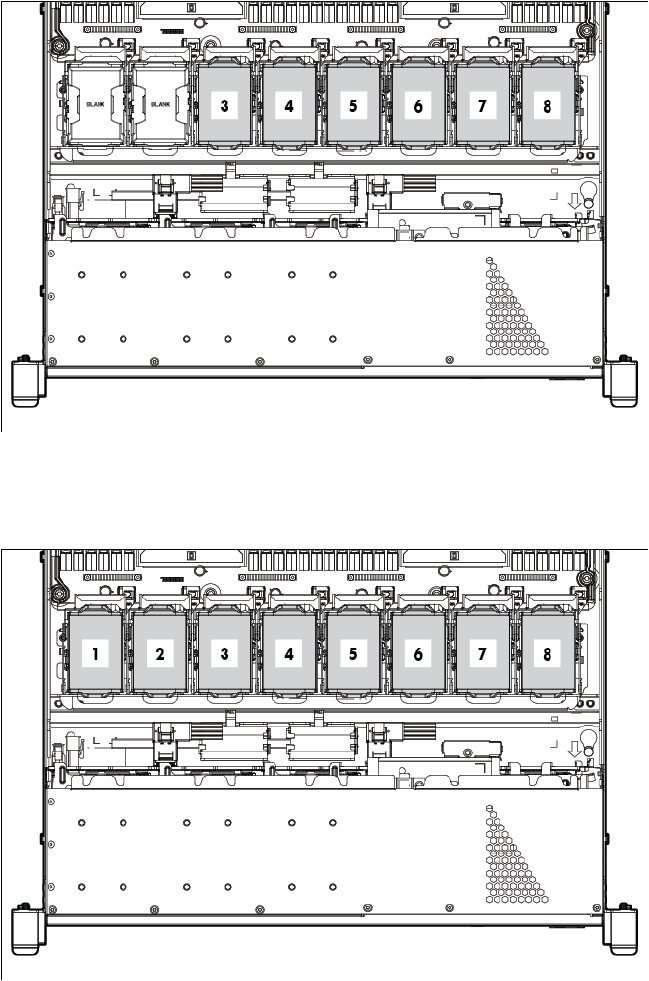

When only one processor is installed, be sure the fan blanks are always installed in bays 1 and 2 to
ensure proper cooling.
• Two-processor configuration
Install fans 1 and 2 only when processor 2 is installed. When only one processor is installed, always
install the fan blanks.
