SAS SFF 8-bay Drive Cage Installation Instructions, Second Edition - HP ProLiant DL785 G5 Servers

SAS SFF 8-bay Drive Cage Installation Instructions
for HP ProLiant DL785 Generation 5 Servers
Overview
This document provides the procedure for installing the optional SAS Small Form Factor (SFF) 8-bay
Drive Cage.
Kit contents
• SAS backplane
• Power cord
• Data Cables (two bundled)
• Drive cage label
• Hard drive blanks (seven)
• This document
Installing the drive cage
CAUTION: To prevent improper cooling and thermal damage, do not operate the server
unless all bays are populated with either a component or a blank.
1. Power down the server.
2. Extend the server from the rack.
3. Remove the access panel.

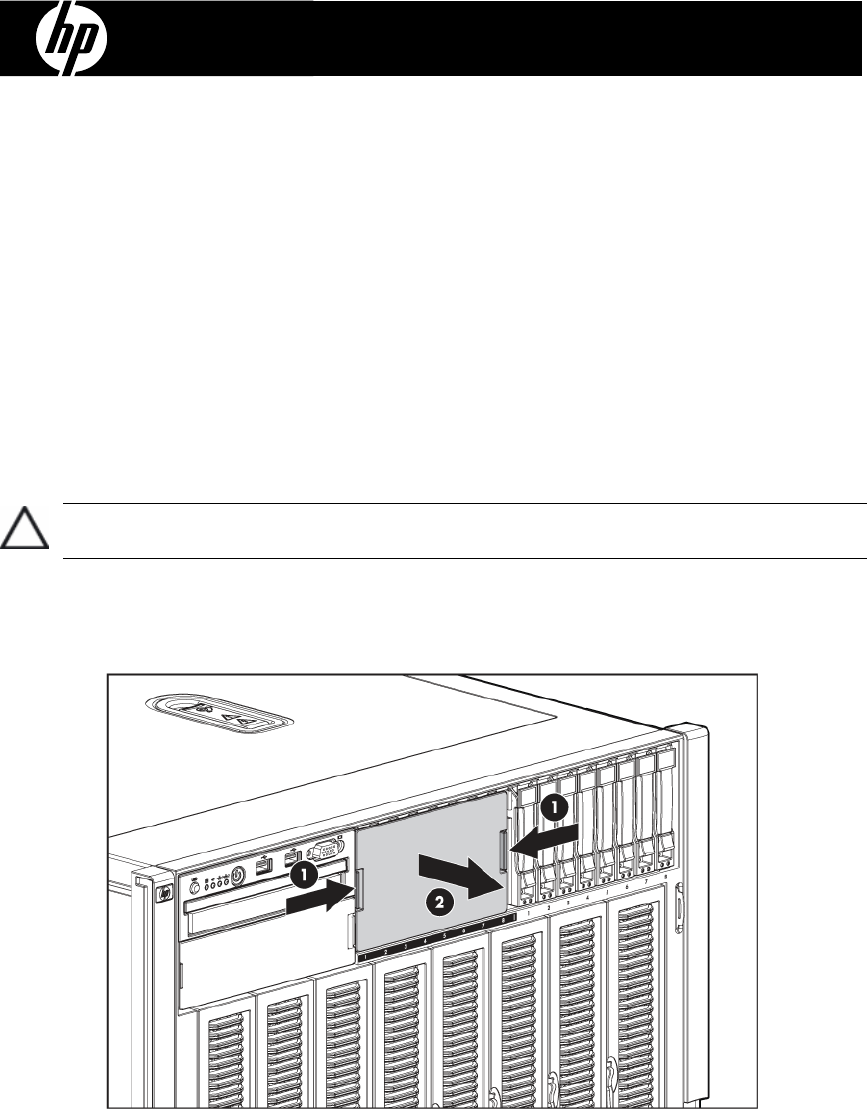

4. Remove the blank.
1
