3-52 Compaq ProLiant ML530 Servers Maintenance and Service Guide
Printing the Event List
NOTE: You can view the event list only from the Recovery/Integrated Management Log screen as
described above in the “Viewing the Event List” section.
1. From the Compaq Insight Manager screen, select the appropriate server.
2. Select the Configuration button, then the Recovery button, then Print.
OS IML Viewer
Windows NT and Novell NetWare have OS-specific IML viewers that allow you to view the
IML while the server is running and while you are at the server console.
Event List
The Event List displays the affected components and the associated error messages. Although
the same basic information displays, the format of the list may differ, depending on how you
view the IML: through Compaq Insight Manager or through the OS IML Viewer. An example
of the format of an event displayed on the Compaq IML Viewer follows:

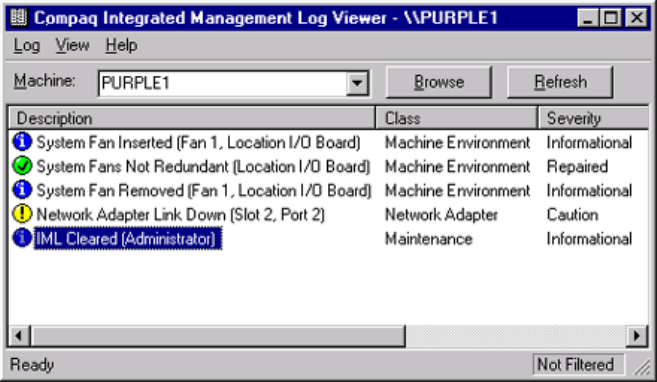

Figure 3-1. Example of Compaq Integrated Management Log Viewer
