4-4 Compaq ProLiant ML530 Servers Maintenance and Service Guide
Switches
This section contains information concerning all switches located on Compaq ProLiant ML530
servers. The system board has one DIP switch. The system configuration switch location is
shown in Figure 4-3.
12 3456

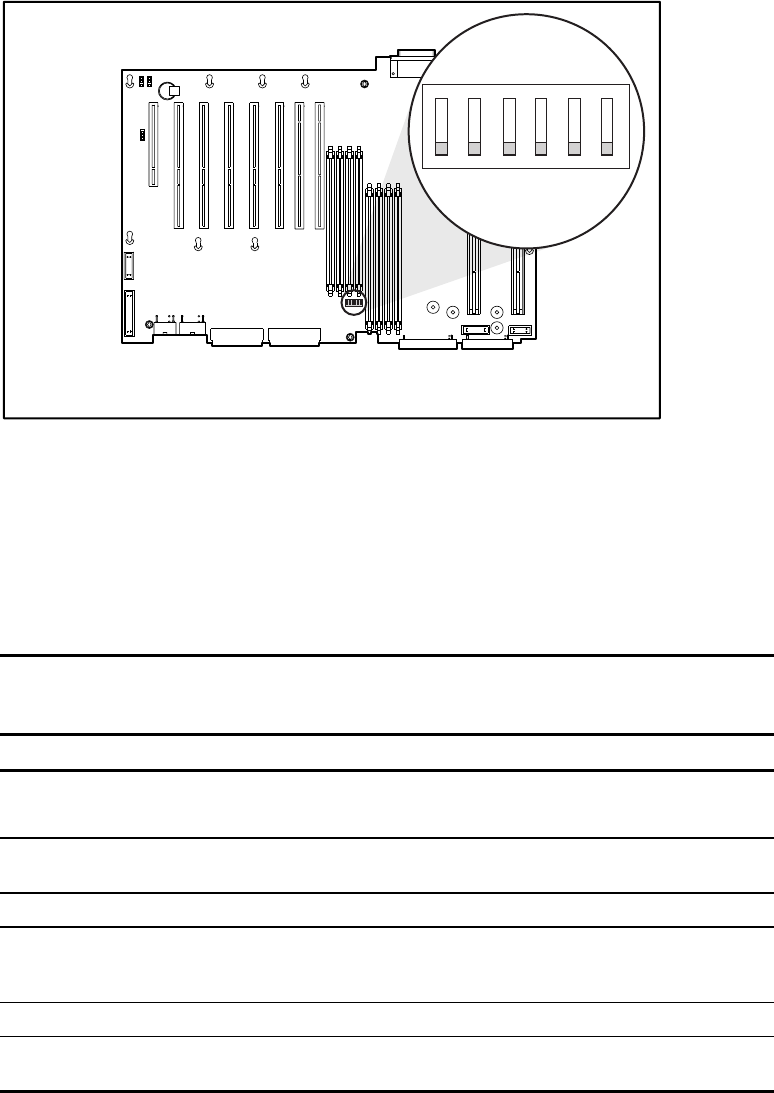

Figure 4-3. System board configuration switch location
NOTE: The processor speed of Compaq ProLiant ML530 servers is determined by the system ROM
during Power-On Self-Test (POST). Therefore, it is not necessary to set any processor switch settings.
Configuration Switch Settings
The system board configuration switch settings are described in Table 4-3.
Table 4-3
System Board Configuration Switch Settings
Switch Function On Off (Default)
1 Video Embedded video disabled Embedded video enabled
ROM controls embedded video
2 Lock configuration System configuration is locked
and cannot be changed
System configuration can be
changed
3 Tower-to-rack conversion Rack-mount configuration Tower configuration
4 Diskette boot feature Diskette enabled for booting,
overriding System Configuration
Utility
Diskette boot controlled through
System Configuration Utility
5 Power-on password Power-on password disabled Power-on password enabled
6 Maintenance NVRAM invalidated;
configuration lost
NVRAM validated; configuration
not lost
