4-10 Compaq ProLiant ML530 Servers Maintenance and Service Guide
Hot-Plug Power Supply
The hot-plug power supply diagnostic LEDs indicate the condition of each hot-plug
power supply. If the front panel power supply status LED is amber, check the individual
power supply diagnostic LEDs to determine which power supply has failed. View the diagnostic
LEDs from the rear of the server.
The power supply diagnostic LEDs and their functions for Compaq ProLiant ML530 servers are
shown in Figure 4-8 and Table 4-8. To replace a hot-plug power supply, see “Hot-Plug
Power Supplies” in Chapter 2. The color of the status and diagnostic LEDs resets by replacing
the power supply or restoring AC power to the power supply.
1
2

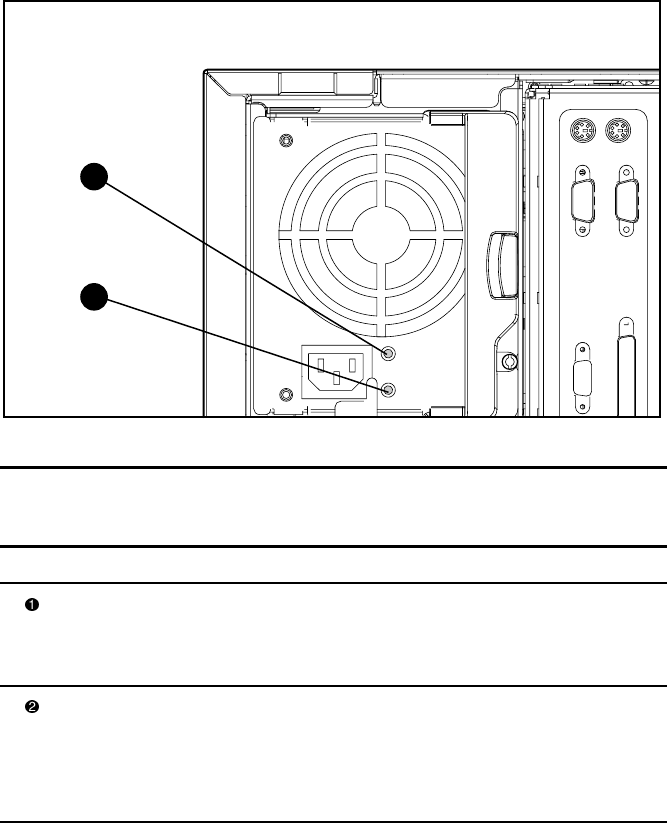

Figure 4-8. Hot-plug power supply diagnostic LED Indicators
Table 4-8
Hot-Plug Power Supply Diagnostic LED Indicators
Item Description Status Condition
AC power On System on
(Green) Flashing System in standby
Off No AC power present
Error Off Power supply operational
(Amber) On Power supply failure—replace power supply
All on No AC power present to any power supply
Flashing Current power supply limit exceeded
