Connectors, Switches, Jumpers, and LED Indicators 4-11
Hot-Plug SCSI Hard Drive
Each hot-plug SCSI hard drive LED indicates the operational status of the hard drive. The
hot-plug hard drive LED location, function, and replacement condition for Compaq
ProLiant ML530 servers is shown in Figure 4-9 and described in Table 4-9. Refer to the
Compaq ProLiant ML530 Troubleshooting Guide for further information.
1
2
3

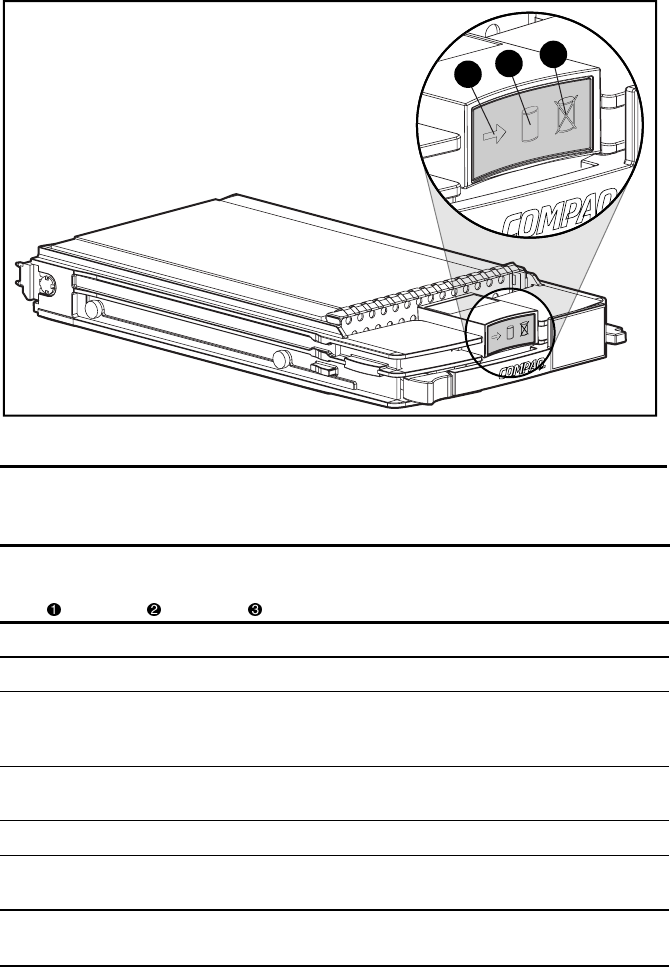

Figure 4-9. Hot-plug SCSI hard drive LED indicators
Table 4-9
Hot-Plug SCSI Hard Drive LED Indicators
Drive
Activity
LED
Drive
Online
LED
Drive
Fault
LED
Condition
Off Off Off Drive is off. OK to remove drive.
Off Off Amber Failed drive. Replace hot-plug SCSI hard drive.
Off Green Off Drive online and configured as part of an array.
OK to replace drive if predictive failure alert is
received.
Green Green Off Drive online and being accessed. OK to replace
drive if predictive failure alert is received.
Green Off Off
Drive being accessed. DO NOT remove drive.
Green Flashing
Green
Off
Drive being rebuilt. DO NOT remove drive.
Flashing
Green
Flashing
Green
Flashing
Amber
Drive being identified by the Compaq Array
Configuration Utility. DO NOT remove drive.
