4-12 Compaq ProLiant ML530 Servers Maintenance and Service Guide
RJ-45 Network Connector
The RJ-45 network connector status LEDs are located on the rear of Compaq ProLiant ML530
server. These LEDs indicate the condition of the server’s network connection.
1
2

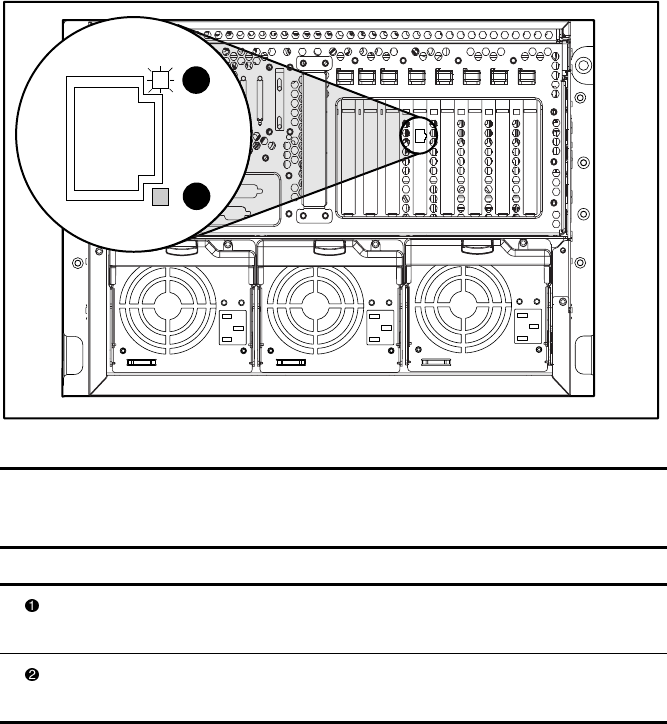

Figure 4-10. RJ-45 network connector status LED indicators
Table 4-10
RJ-45 Network Connector Status LED Indicators
Item Description Status Condition
Link On Linked to network
Off No network link
Activity On or flashing Network activity
Off No network activity
