2-8 Compaq ProLiant ML530 Servers Maintenance and Service Guide
Tower Model Front Bezel Door
To remove the tower model front bezel door:
1. Unlock and swing open the front bezel door completely.
2. Lift up the front bezel door and pull it away from the chassis .
1
2

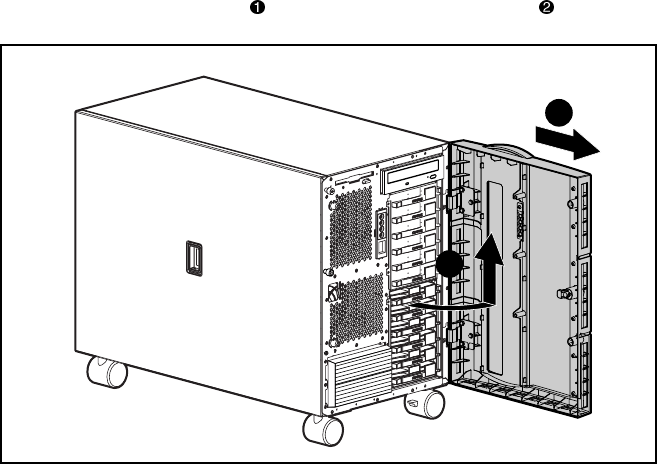

Figure 2-1. Removing the tower model front bezel door
Reverse steps 1 and 2 to replace the front bezel door.
