Removal and Replacement Procedures 2-9
Rack-Mount Bezel
WARNING: To reduce the risk of personal injury or damage to the equipment, do not use the
rack-mount bezel handles or system board tray handle to move Compaq ProLiant ML530
servers.
To remove the rack-mount bezel:
1. Perform the preparation procedures. See “Hot-Pluggable Device” earlier in this chapter.
2. Loosen the access panel screws or remove the access panel. See “Access Panel” later in
this chapter.
3. Remove the four T-15 screws securing the rack-mount bezel to the chassis.
4. Pull the rack-mount bezel away from the chassis.
1
1
2

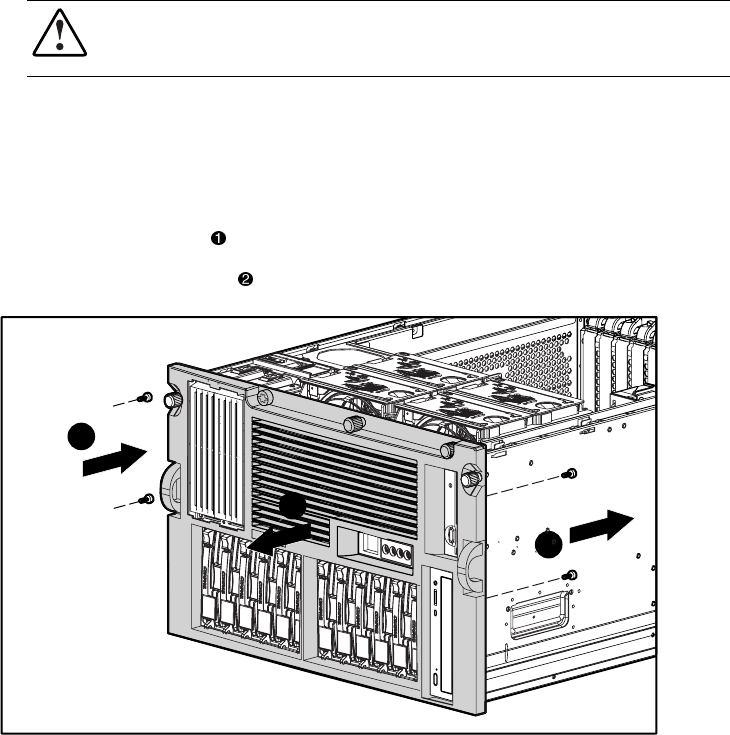

Figure 2-2. Removing the rack-mount bezel
Reverse steps 1 through 4 to replace the rack-mount bezel.
