Removal and Replacement Procedures 2-11
Fans
Compaq ProLiant ML530 servers ship standard with two hot-pluggable system fans (one CPU
and one I/O) and three hot-pluggable drive fans. The two system fan baskets are designed to
allow for a redundant hot-pluggable fan in each basket. Figure 2-4 and Table 2-1 illustrate the
location of all fans in Compaq ProLiant ML530 servers, with the fan name and the description
of what is cooled by each fan.
NOTE: Fan speed will vary with the internal temperature of the server. Automatic adjustment of fan
speed differs in accordance with installed drivers.
NOTE: Fans may continue to spin after a temporary failure occurs. Replace failed fans (amber LED) even
if spinning continues.
3
4
1
2
5 6 7

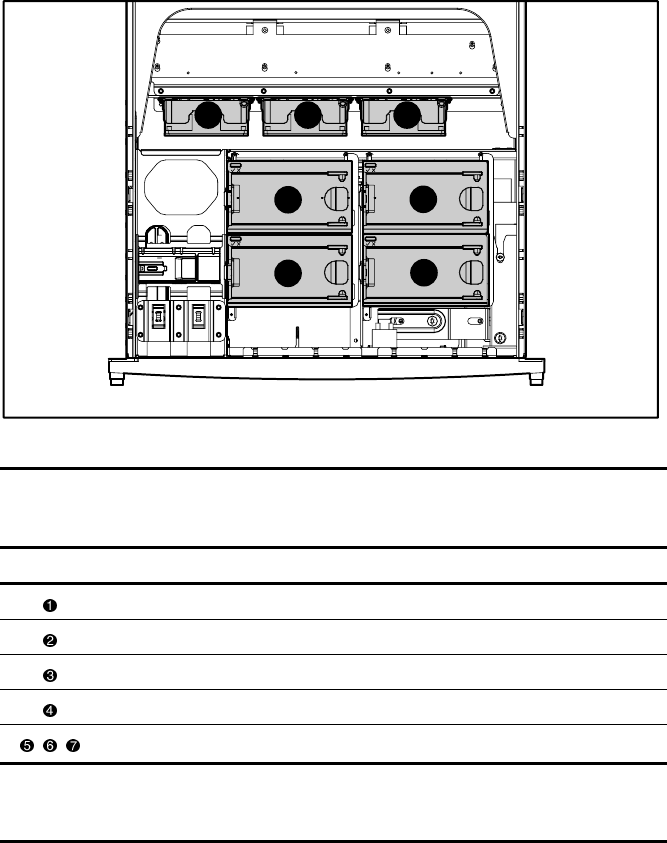

Figure 2-4. Hot-plug fan locations
Table 2-1
Hot-Plug Fan Locations
Fan Description Component Cooled
Primary CPU fan (standard) Processors
Redundant CPU fan (optional) Processors
Primary I/O fan (standard) System board
Redundant I/O fan (optional) System board
, ,
Drive fans (standard) Hard drives
Note: If the fan diagnostic LED indicator is amber, this indicates fan failure. If the fan
diagnostic LED indicator is green, the fan is working properly. See “LED Indicators, Hot-Plug
Fan” in Chapter 4 for more information.
