To remove the system fan basket-and-cable bracket:
1. Remove the system fan basket. See “To remove the system fan basket” earlier in this
section.
2. Remove the four T-15 screws that secure the system fan basket-and-cable bracket to the
chassis.
3. Slide the bracket toward the center of the chassis, then lift it away from the chassis .
1
2

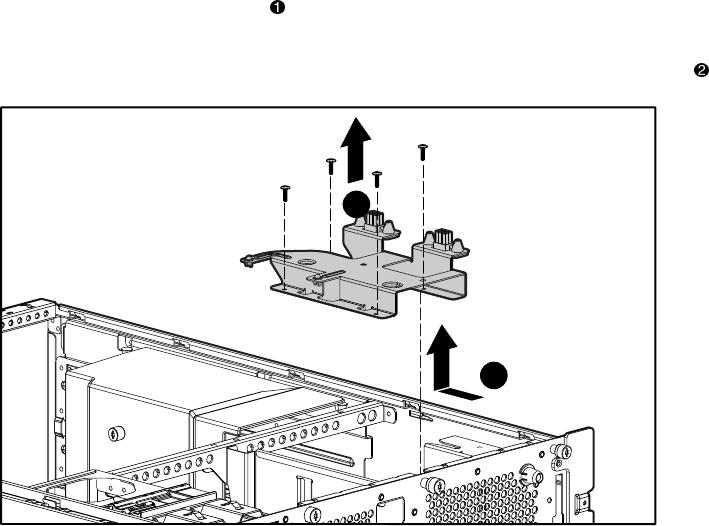

Figure 2-7. Removing the system fan basket-and-cable bracket
Reverse steps 1 through 3 to replace the system fan basket-and-cable bracket.
To remove a system fan cable:
1. Disconnect the system fan cable from the system board.
2. Release the cable from the cable clip.
3. Remove the cable from the chassis.
Reverse steps 1 through 3 to replace a system fan cable.
