Removal and Replacement Procedures 2-15
CPU Fan Air Baffle
To remove the CPU fan air baffle:
1. Perform the preparation procedures. See “Hot-Pluggable Device” earlier in this chapter.
2. Remove the access panel. See “Access Panel” earlier in this chapter.
3. Unclip the external SCSI cable (if present) from the cable clips ➊ on the CPU fan air
baffle.
4. Unsnap the two pins ➋ and loosen the thumbscrew on the CPU fan air baffle.
5. Lift the CPU fan air baffle away from the chassis .
2
2
3
4
1

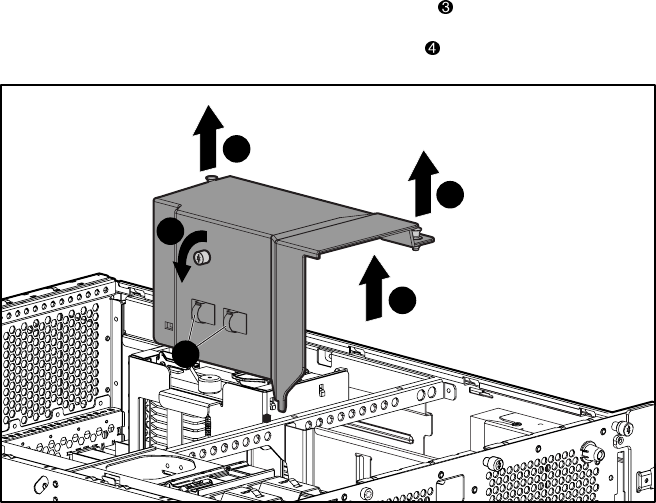

Figure 2-8. Removing the CPU fan air baffle
Reverse steps 1 through 5 to replace the CPU fan air baffle.
