2-16 Compaq ProLiant ML530 Servers Maintenance and Service Guide
Hard Drive Fan Air Baffle
To remove the hard drive fan air baffle:
1. Perform the preparation procedures. See “Powering Down the Server” earlier in this
chapter.
2. Remove the system fan basket assembly. See “System Fan Basket Assembly” earlier in
this chapter.
3. Loosen the two thumbscrews ➊ on the hard drive fan air baffle.
4. Slide the baffle over the drive fans, then lift the hard drive fan air baffle out of the
chassis
➋.
2
1
1

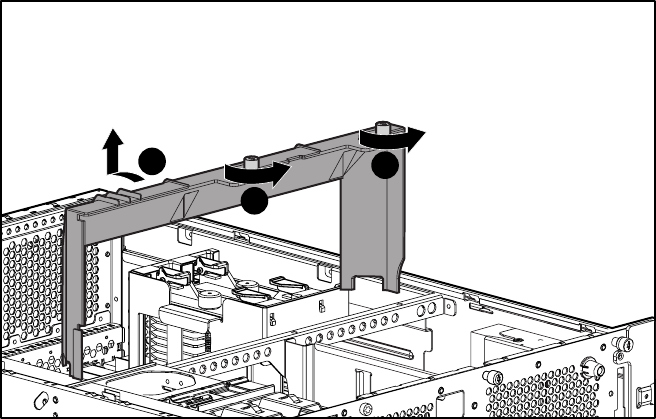

Figure 2-9. Removing the hard drive fan air baffle
Reverse steps 1 through 4 to replace the hard drive fan air baffle.
