Removal and Replacement Procedures 2-19
Removable Media and Mass Storage Devices
Compaq ProLiant ML530 servers can house up to 16 mass storage devices, shown in
Figure 2-12, including:
■ Preinstalled 3.5-inch 1.44-MB diskette drive
■ Preinstalled IDE CD-ROM drive
■ Two removable media devices
■ Two hot-plug drive cages containing twelve 1-inch LVD hot-plug drives (six drives each
on two SCSI buses)
1
2
3
5
4

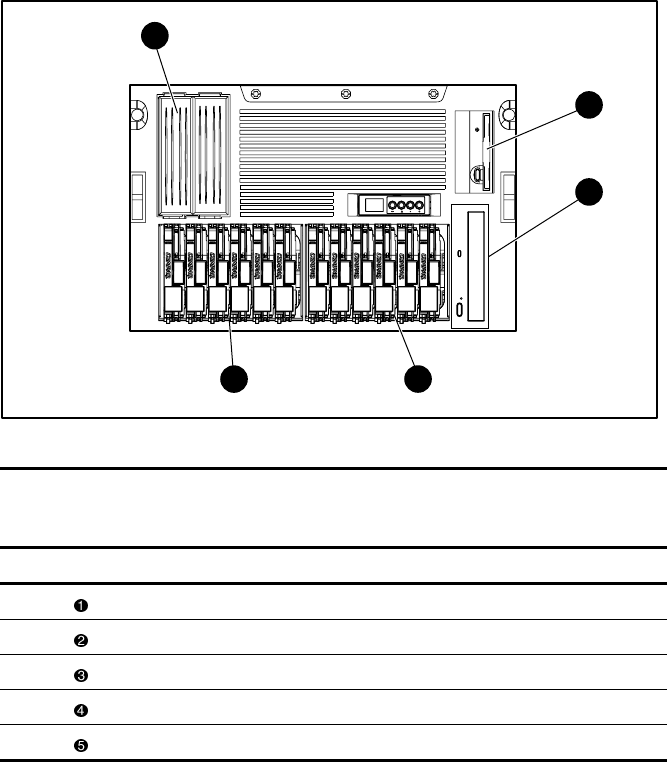

Figure 2-12. Removable media and mass storage device locations
Table 2-2
Removable Media and Mass Storage Device Descriptions
Location Description
Removable media devices
Diskette drive
CD-ROM drive
Primary hard drive cage with hot-plug SCSI hard drives
Optional hard drive cage with hot-plug SCSI hard drives
