2-22 Compaq ProLiant ML530 Servers Maintenance and Service Guide
6. Remove the four T-15 screws securing the hard drive cage to the chassis.
7. Slide the hard drive cage assembly out the front of the chassis.
NOTE: To increase accessibility to the cables, remove the drive fans. See “Hot-Plug Drive Fans” earlier
in this chapter.
2
1
1

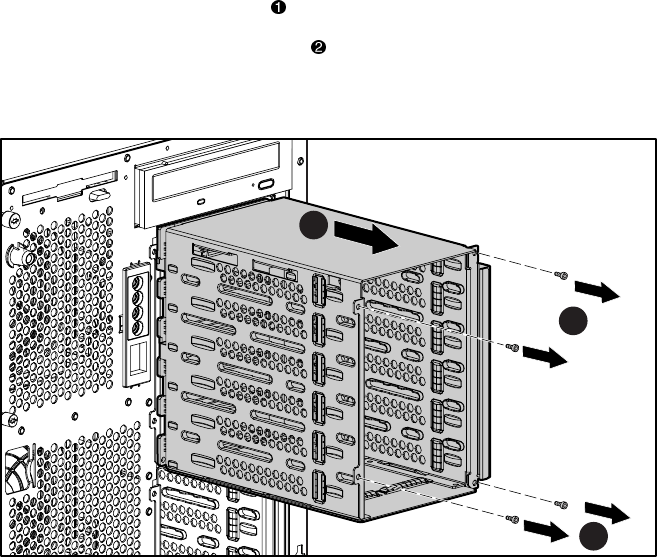

Figure 2-14. Removing the hard drive cage
Reverse steps 1 through 7 to replace the hard drive cage, or cover the opening with a blanking
panel to maintain proper airflow.
