Removal and Replacement Procedures 2-23
Removable Media Devices
The removable media area contains two bays. To remove a device:
1. Perform the preparation procedures. See “Powering Down the Server” earlier in this
chapter.
2. Remove the access panel. See “Access Panel” earlier in this chapter.
3. Disconnect all cabling from the removable media device.
4. Slide the green plastic locking lever on the outside of the removable media area to
release the device.
5. Pull the device from the removable media area.
CAUTION: A blanking panel must cover an unused media bay to ensure proper airflow.
6. Remove and retain guide rails and screws from the blank or device for use on the
replacement blank or device.
1
2

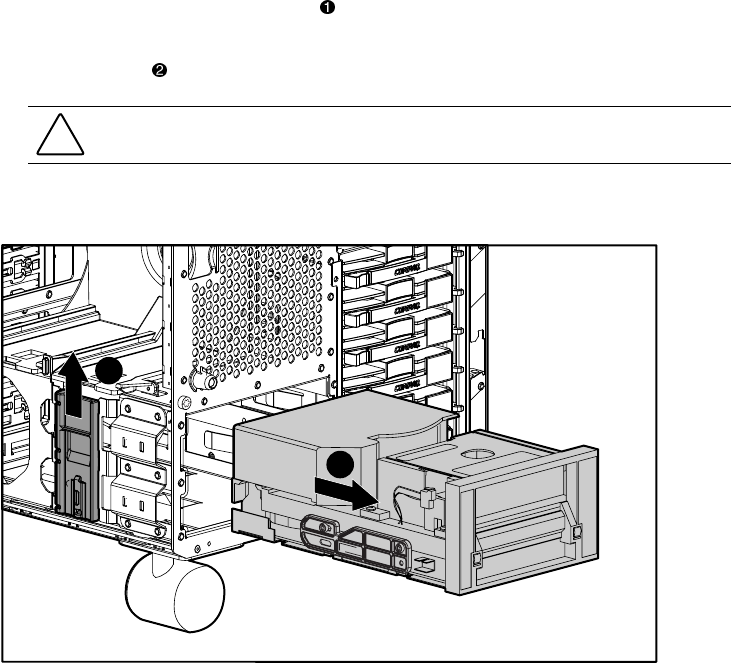

Figure 2-15. Removing a device from the removable media area
Reverse steps 1 through 6 to replace a removable media device, or cover the opening with a
blanking panel.
