CD-ROM Drive
To remove the CD-ROM drive:
1. Perform the preparation procedures. See “Powering Down the Server” earlier in this
chapter.
2. Remove the access panel. See “Access Panel” earlier in this chapter.
3. Remove the hard drive fan air baffle. See “Hard Drive Fan Air Baffle” earlier in this
chapter.
4. Disconnect all cabling from the CD-ROM drive. The CD-ROM drive signal cable is
color-coded orange.
5. Remove the redundant CPU fan for easier accessibility. See “Hot-Plug System Fan”
earlier in this chapter.
6. Loosen the thumbscrew located near the bottom of the CPU fan basket to release the
metal locking bracket.
7. Slide the metal locking bracket toward the CD-ROM drive.
8. Pull the CD-ROM drive from the chassis.
3
2
1

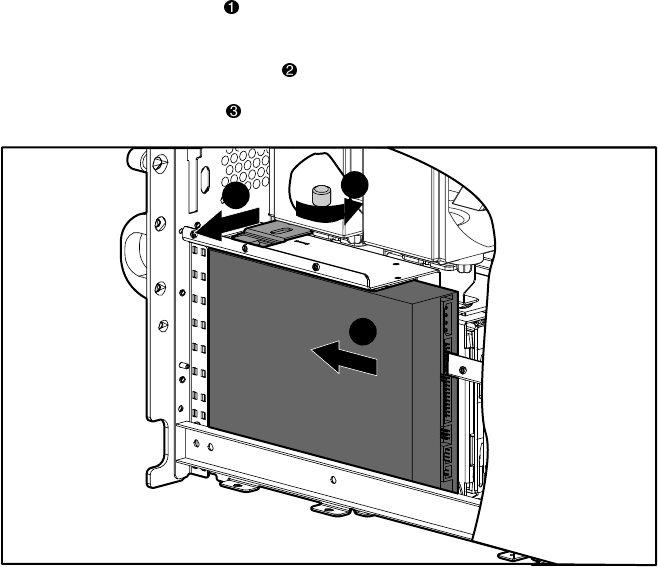

Figure 2-16. Removing the CD-ROM drive
Reverse steps 1 through 8 to replace the CD-ROM drive.
