Removal and Replacement Procedures 2-35
PCI Retainer
To remove the PCI retainer:
1. Perform the preparation procedures. See “Powering Down the Server” earlier in this
chapter.
NOTE: The PCI retainer is a shipping bracket and is not necessary for normal server operation. The PCI
retainer may be removed using hot-pluggable device procedures, as long as the PCI expansion boards
are not removed.
2. Remove the access panel. See “Access Panel” earlier in this chapter.
3. Loosen the thumbscrew .
4. Pivot the PCI retainer and lift it from the chassis .
1
2
3

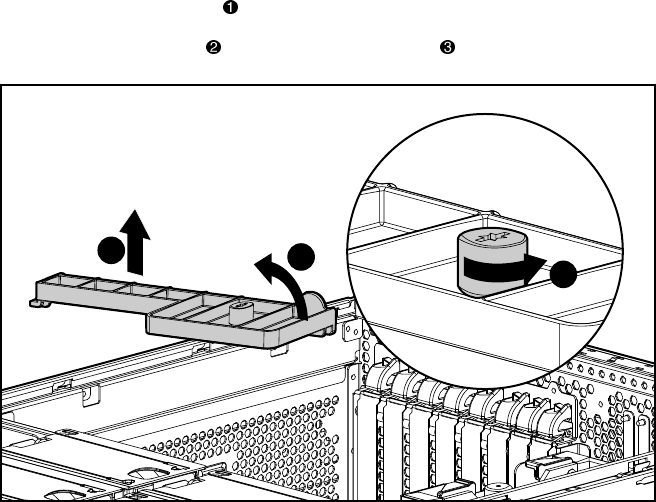

Figure 2-28. Removing the PCI retainer
Reverse steps 1 through 4 to replace the PCI retainer.
