2-36 Compaq ProLiant ML530 Servers Maintenance and Service Guide
PCI Expansion Boards
Compaq ProLiant ML530 servers include eight PCI expansion slots, as shown in Figure 2-27.
To remove an expansion board:
1. Perform the preparation procedures. See “Powering Down the Server” earlier in this
chapter.
2. Remove the access panel. See “Access Panel” earlier in this chapter.
3. Remove the PCI retainer. See “PCI Retainer” earlier in this section.
NOTE: The system board tray must be completely in or completely out of the chassis to remove a full
size expansion board.
4. Press the top of the expansion slot latch on the rear of the system board drawer and pull
the latch
, releasing the PCI expansion board or slot cover.
5. Remove the PCI expansion board or slot cover .
3
2
1

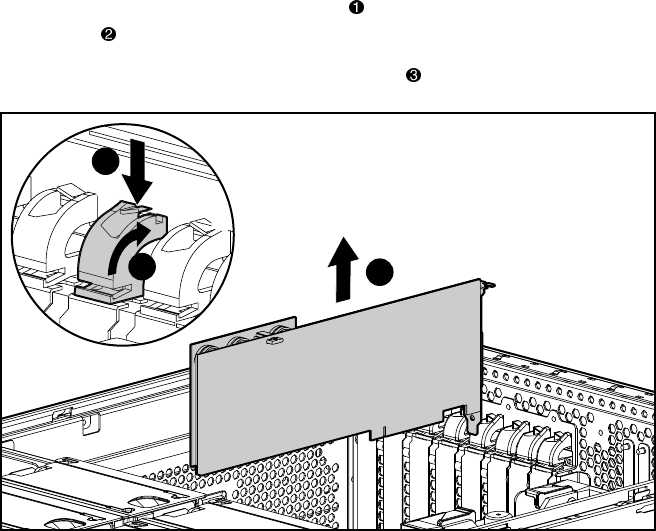

Figure 2-29. Removing a PCI expansion board
Reverse steps 1 through 5 to replace a PCI expansion board.
