PCI Bracket
To remove the PCI bracket:
1. Remove all of the PCI expansion boards. See “PCI Expansion Boards” earlier in this
section.
2. Loosen the two thumbscrews .
3. Slide the PCI bracket toward the system board, then out of the chassis .
1
2
1

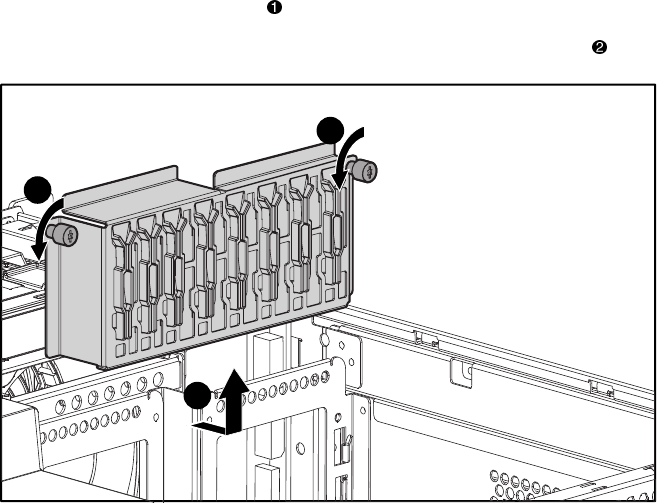

Figure 2-30. Removing the PCI bracket
Reverse steps 1 through 3 to replace the PCI bracket.
