Memory Modules
Compaq ProLiant ML530 servers support from 64 MB to a maximum of 4 GB of synchronous
DRAM (133-MHz, ECC SDRAM) DIMM memory. See Figure 2-31 for the SDRAM DIMM
socket locations.
Follow these guidelines, and the instructions in this section, when installing or replacing
memory modules:
■ Install SDRAM DIMMs in the proper sockets.
■ Use only 64-, 128-, 256-, or 512-MB SDRAM DIMMs.
■ SDRAM DIMMs must be 133-MHz registered (buffered).
■ Install SDRAM DIMMs in the following socket sequence for maximum performance:
G DIMM 1
G DIMM 5
G DIMM 2
G DIMM 6
G DIMM 3
G DIMM 7
G DIMM 4
G DIMM 8
1
2
3
4
5
6
7
8

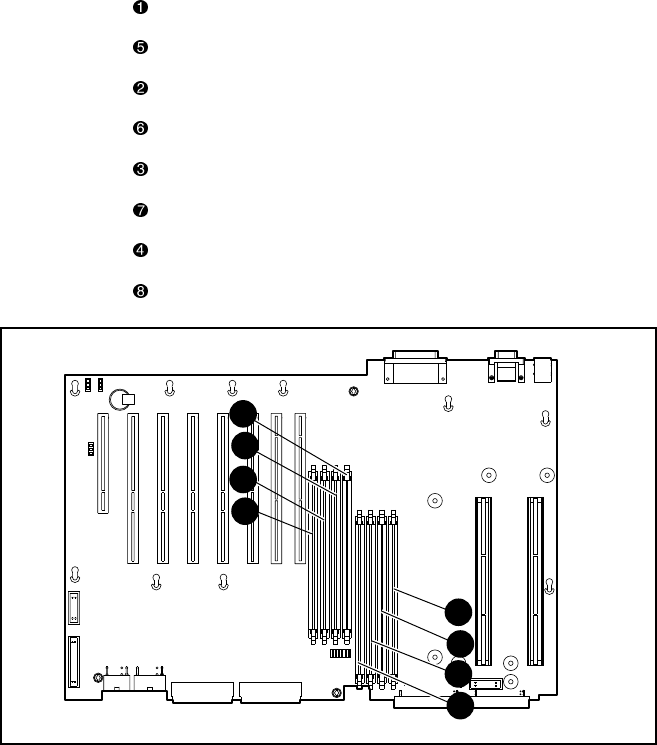

Figure 2-31. SDRAM DIMM socket locations
