2-40 Compaq ProLiant ML530 Servers Maintenance and Service Guide
Processors
Compaq ProLiant ML530 servers support up to two processors. The primary processor is
located closest to the edge of the system board.
IMPORTANT: Use only 133-MHz front-side bus Pentium III Xeon processors with gold-colored
heat sinks. Processors with other colored heat sinks will not function properly in Compaq ProLiant ML530
servers.
To remove a processor:
1. Perform the preparation procedures. See “Powering Down the Server” earlier in this
chapter.
2. Remove the access panel. See “Access Panel” earlier in this chapter.
3. Remove the CPU fan air baffle. See “CPU Fan Air Baffle” earlier in this chapter.
4. Loosen the thumbscrew located on the top of the processor.
5. Lift and swing the levers outward.
6. Remove the processor from the slot .
1
2
3
2

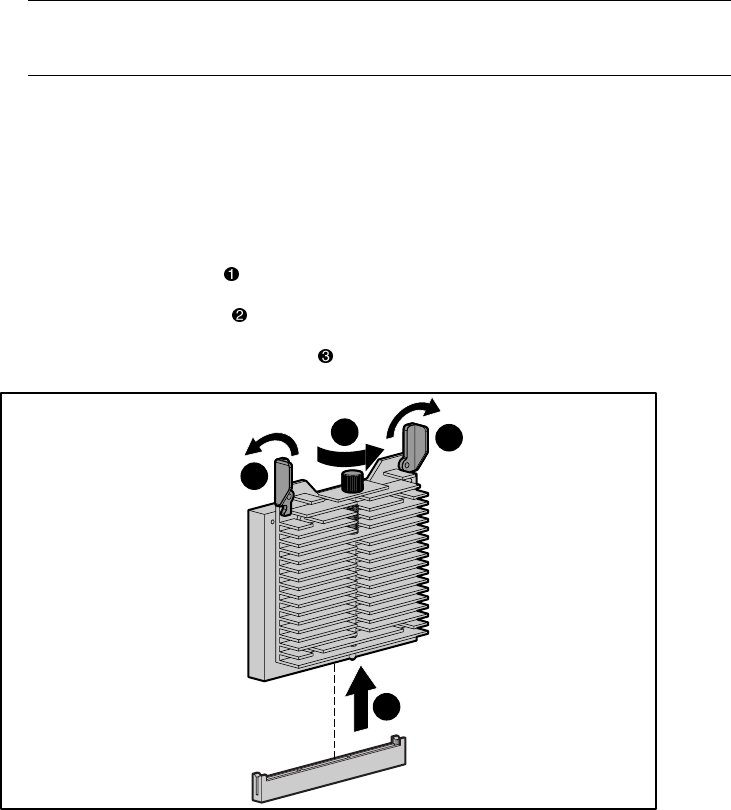

Figure 2-33. Removing a processor
Reverse steps 1 through 6 to replace the processor.
