2-44 Compaq ProLiant ML530 Servers Maintenance and Service Guide
Power Backplane Board
To remove the power backplane board:
1. Perform the preparation procedures. See “Powering Down the Server” earlier in this
chapter.
2. Remove the power supplies. See “Hot-Plug Power Supplies” earlier in this chapter.
3. Remove the access panel. See “Access Panel” earlier in this chapter.
4. Press the thumb latch adjacent to the system board tray handle to release the system board
tray. Slide the system board tray partially out of the chassis.
5. Disconnect and remove all cables from the power backplane board. See “Cable Routing
Diagrams” earlier in this chapter.
6. Loosen the two thumbscrews .
7. Slide the power backplane board toward the power supplies, then lift the power
backplane board from the chassis.
2
1

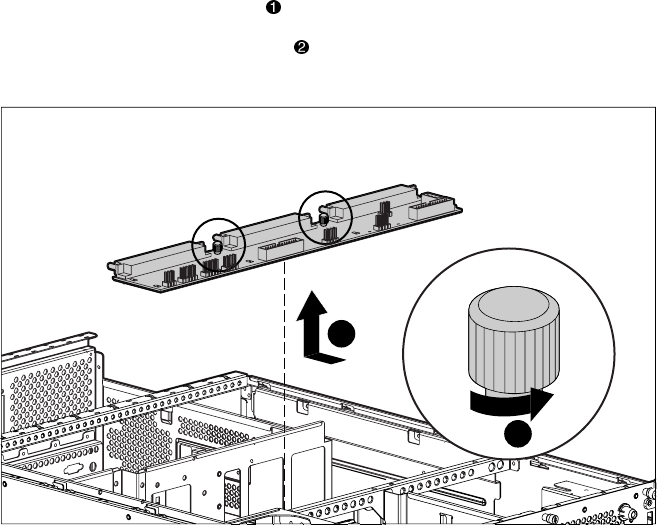

Figure 2-37. Removing the power backplane board
Reverse steps 1 through 7 to replace the power backplane board.
