HP ProLiant SL390s G7 2U Half-width Server Installation Sheet

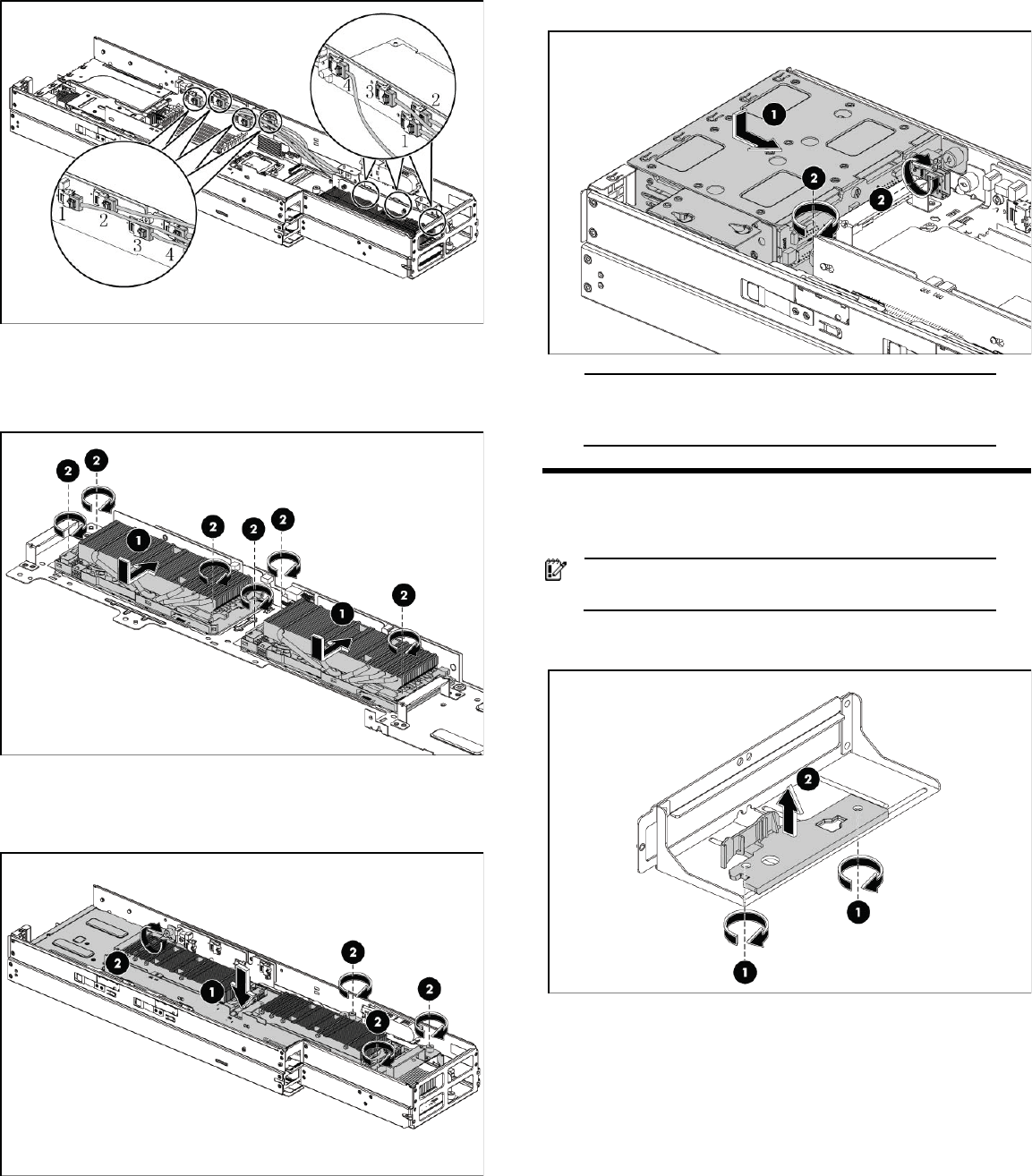

Figure 16 Connecting the GPU cables
To install a dual GPU kit:
1. Install the GPUs on the 2 GPU shelf.
Figure 17 Installing the GPUs on the 2 GPU shelf.
2. Install the 2 GPU shelf into the tray and fasten the screws to
secure it to the tray.
Figure 18 Installing the 2 GPU shelf into the tray
3. Reinstall the HDD module and fasten the screws.
Figure 19 Reinstalling the HDD module
NOTE: For detailed information, refer to the HP Single GPU
Riser Kit Installation Instructions, HP SL390s 2 GPU Riser
Option Kit Installation Instructions.
Installing a RAID Controller with
Battery-backed Write Cache
IMPORTANT: Remove the plastic bracket from the metal
bracket before installing the plastic bracket into the chassis.
1. Unfasten the screws and lift the plastic BBWC bracket out.
Figure 20 Removing the plastic BBWC bracket from the metal bracket
2. Align the BBWC bracket to the tray and fasten the screws.
