HP UPS R5000 Installation Instructions
Table Of Contents
- HP UPS R5000 Installation Instructions
- Translated instructions
- Traductions des présentes instructions
- Übersetzungen dieser Anweisungen
- Traduzioni di queste istruzioni
- Traducción de estas instrucciones
- Overview
- Precautions
- UPS kit contents
- Tools and materials
- Selecting a site
- Readying the equipment
- Installing the mounting rails
- Installing the UPS
- Connecting the battery leads
- Attaching the UPS front bezel
- Connecting the serial communications port
- Connecting the USB communications port
- Connecting the REPO port
- Connecting the ground bonding cable
- Connecting the network cable
- Connecting the UPS to utility power
- Connecting devices to the UPS
- Connecting the UPS cord retention clips
- Charging the UPS batteries
- Starting power to the load
- Configuring the UPS Network Module

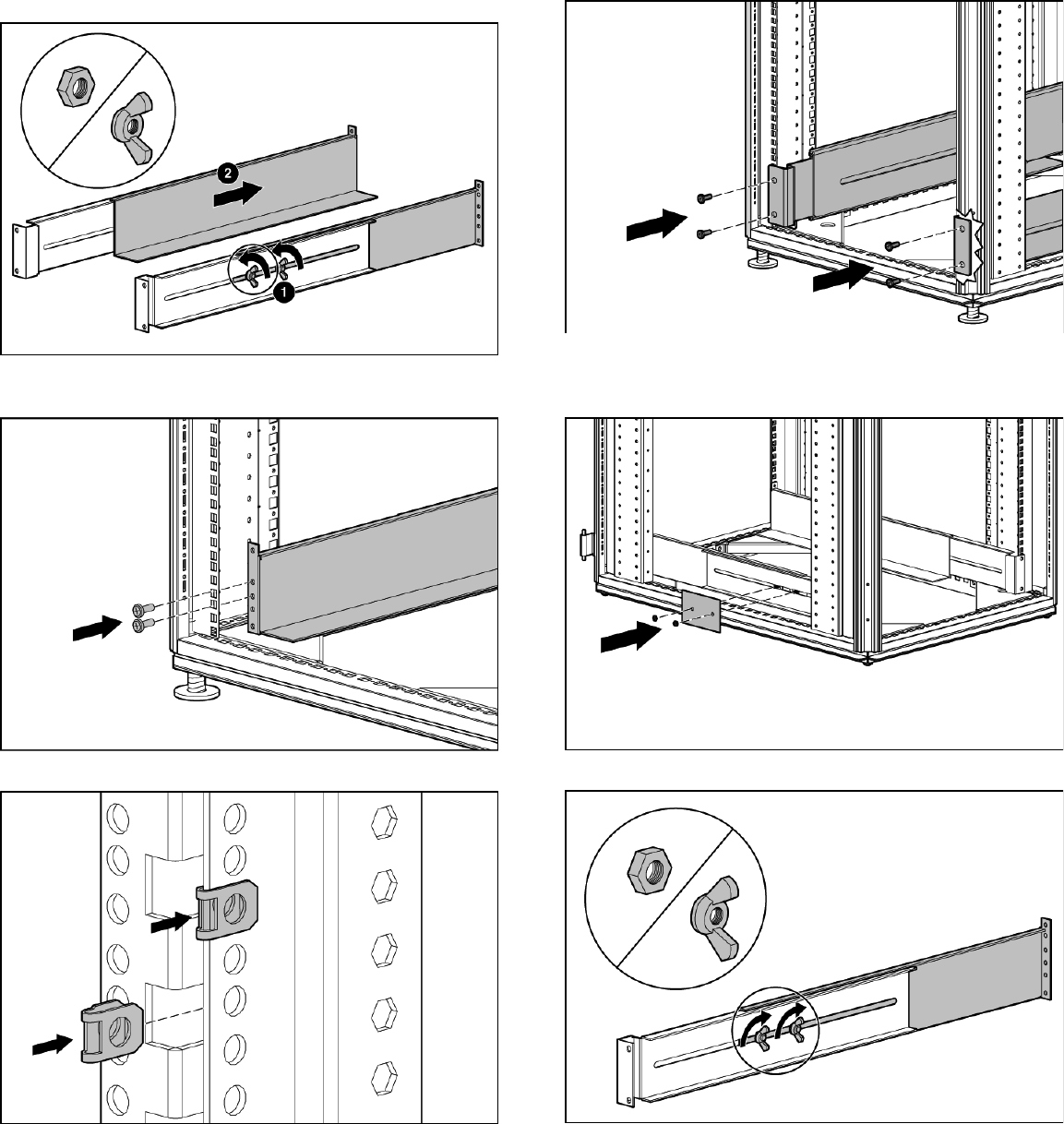

1. Loosen the wing nuts or hex nuts, and then extend the brackets to
the appropriate length.
2. Insert screws through the rack into the mounting rail and the front
of each mounting bracket.
3. Install clip nuts into the rear of the rack.
4. Insert screws through the mounting rail into the clip nuts.
5. Install the rail reinforcement plates and tighten using hex nuts
with captive washers included in the kit, instead of the nuts
included with the rail.
6. Tighten the wing nuts or hex nuts.
