16

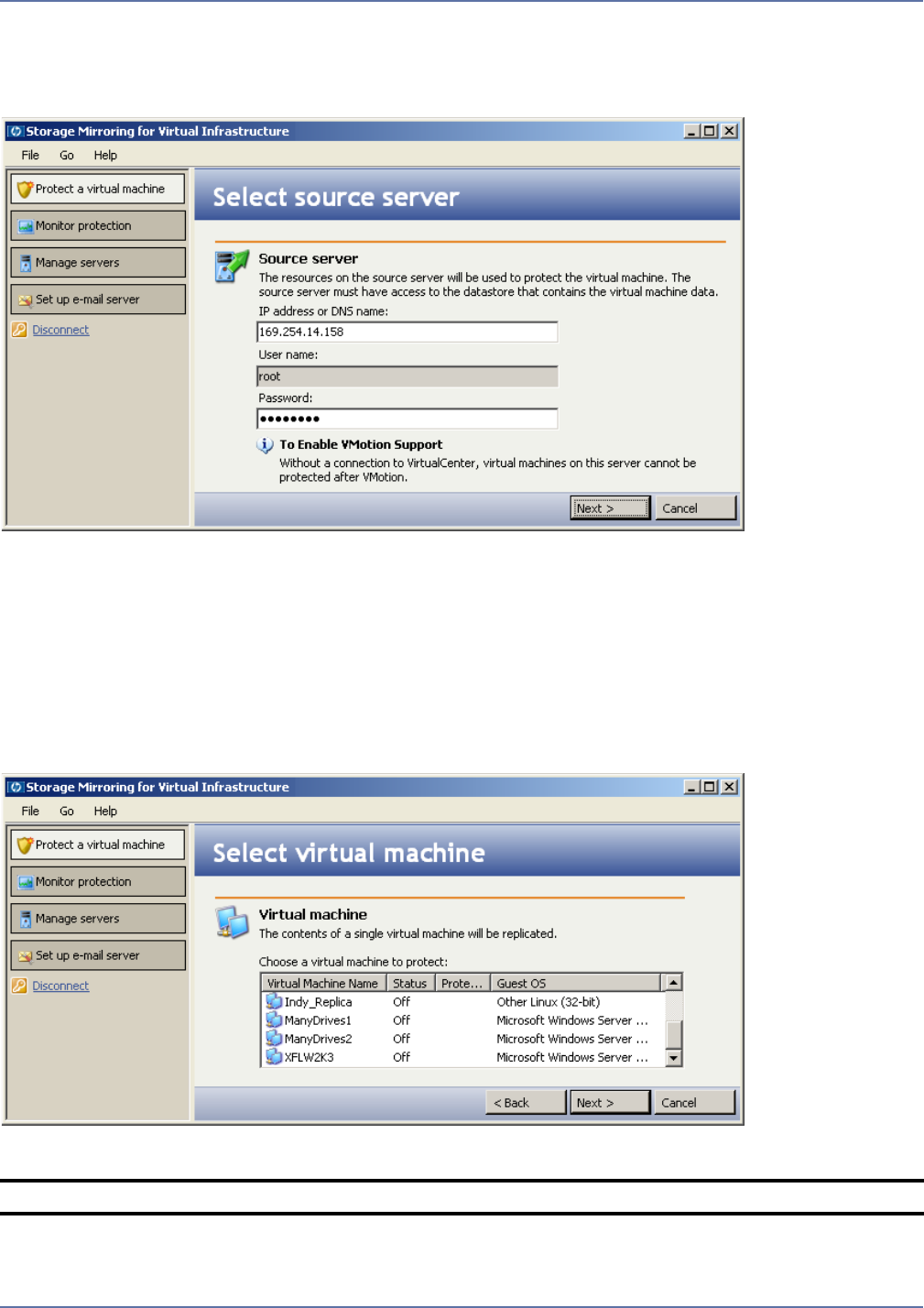

Select the source virtual machine without VirtualCenter
If you did not enter credentials for a VirtualCenter server, when you select Protect a virtual
machine, the Select source server window will appear.
Enter the following information for the source server:
z IP address or DNS name—This field displays the IP address or DNS name of the selected
VMware ESX server.
z User name—Enter the user name for the account you will be using to log on to the source server.
z Password—Enter the password that is associated with the user account.
After all fields have been completed, click Next. A window will display the progress as the Storage
Mirroring for Virtual Infrastructure console generates a list of available virtual machines on the server.
The virtual machines that are found on the source server will be added to the list on the Select
virtual machine window.
Select a virtual machine to protect from the list, then click Next.
Continue to Select the target physical machine without VirtualCenter on page 19.
NOTE: Each protection that you configure will apply to a single virtual machine.
