Monitoring and managing the Director
99Director Element Manager User Guide
Performance View
Display the Performance View in the main panel by choosing Performance from
the view tabs. This view displays a bar graph at the top of the view for all ports.
The lower portion of the view displays statistical values for the specific port’s bar
graph that you choose.

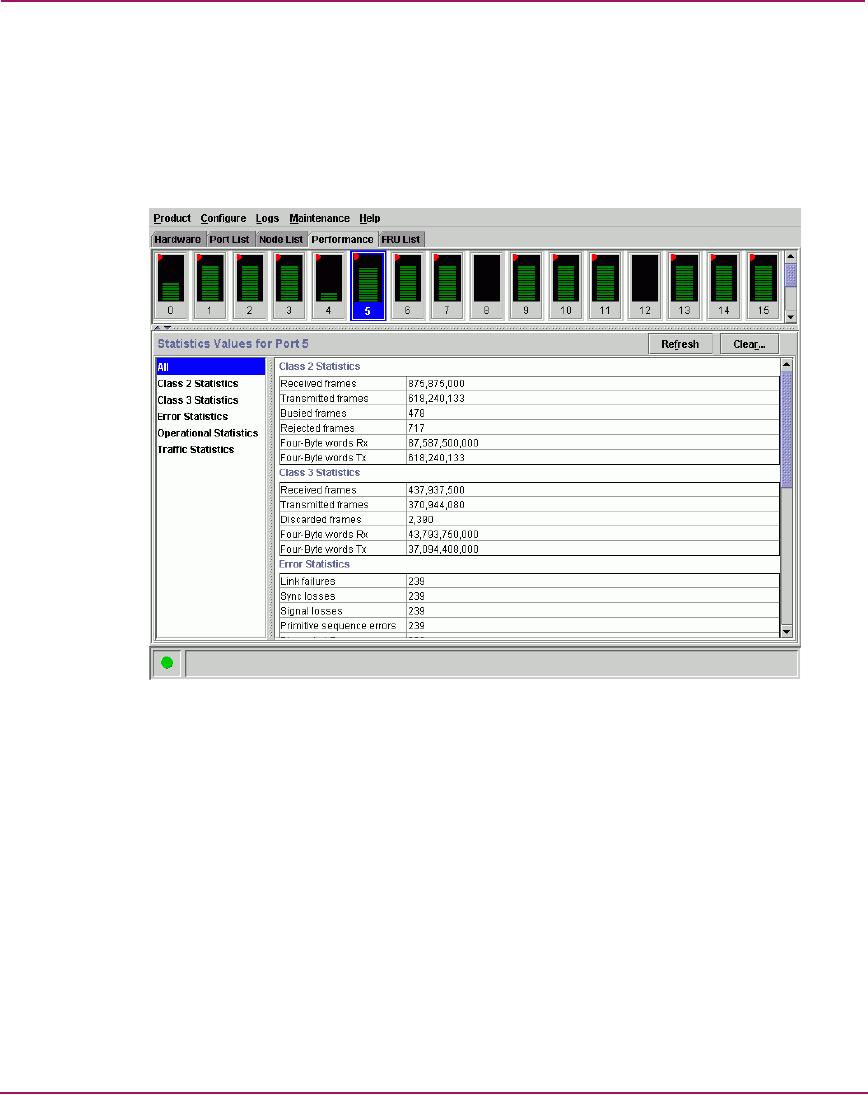

Figure 29: Performance View
Performance View Menu Options
Right-click any of the port bar graphs to display a pop-up menu with the following
port-related action options. These are the same menu options that display when
you right-click a row in the Port List View or a port in the Port Card view. You can
also display these options by clicking a port, port row, or bar graph in the
preceding views and choosing the secondary Port menu from the Product menu
on the menu bar. See “Port Menu” on page 85 for an explanation of these menu
options.
■ Port Properties
■ Node Properties
