Monitoring and managing the Director
107Director Element Manager User Guide
FRU List View
Display the FRU List in the View panel choosing the FRU List option from the
view tabs. This view, as shown in Figure 30, displays information about all
installed FRUs on the director. All data is dynamic and updates automatically as
the software detects changes.

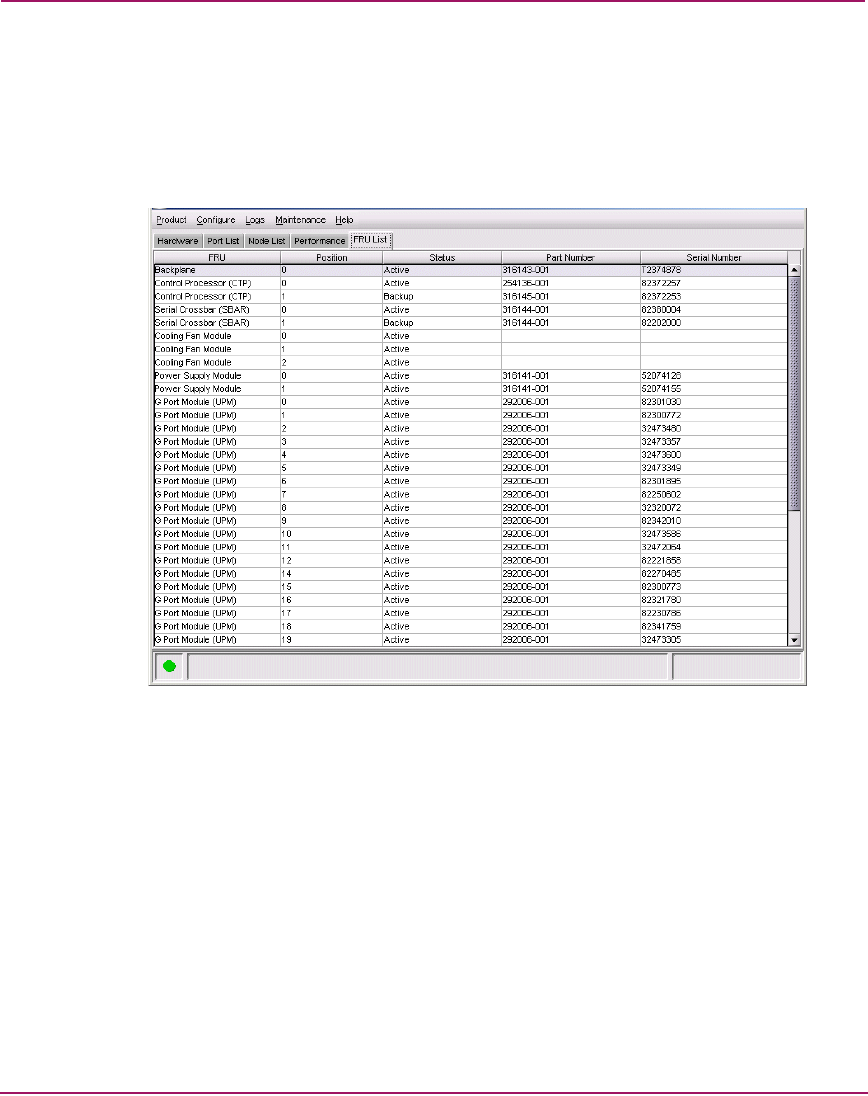

Figure 30: FRU List View
Information on the FRU List View for each FRU includes:
■ FRU—A description of the FRU type, as follows:
— Backplane.
— Control Processor (CTP).
— Serial Crossbar (SBAR).
— G Port Module—For the fiber channel port card, the following acronyms
may display to indicate the card’s port technology:
■ GLSL—G_Port, long wave, single mode LC connector, 1 Gigabit
■ GSML—G_Port, short wave, multimode, LC connector, 1 Gigabit
■ GXXL—G_Port, mixed mode, LC connector, 1 Gigabit
