Configuring the Director
130 Director Element Manager User Guide
This procedure only specifies that data will enter and exit Switch 1 through
specific ports on its way to Switch 3. This process does not specify a Preferred
Path for data moving through Switch 2. To specify paths through Switch 2
(Figure 37, on page page 131), we will do the following:
■ Enter data through port 11
■ Exit data through port 21
■ Make Switch 3 the destination device
Use the following procedure to accomplish the above tasks:
1. Click Configure > Preferred Path in Switch 2’s Element Manager window
to configure the path on Switch 2. The Add Preferred Path dialog box
displays.
2. Click11 in the Source Port field.
3. Click 21 in the Exit Port field.
4. Enter 3 (Switch 3’s domain ID) in the Destination Domain ID field.
The primary choice for data movement will be from the Source Device in port 14
and out port 45 on Switch 1, in port 11 and out port 21 on Switch 2, and through
Switch 3 to either Destination Device A or B.

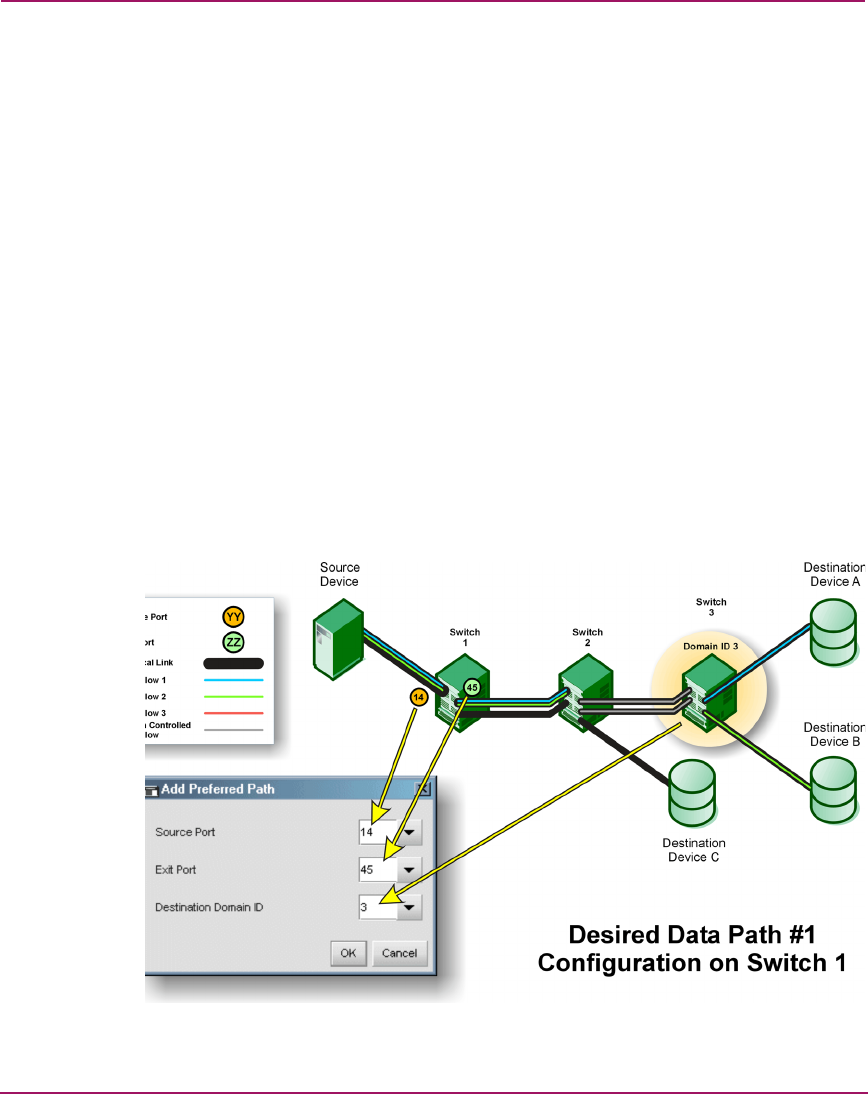

Figure 36: Specifying preferred path for switch 1
