Configuring the Director
131Director Element Manager User Guide

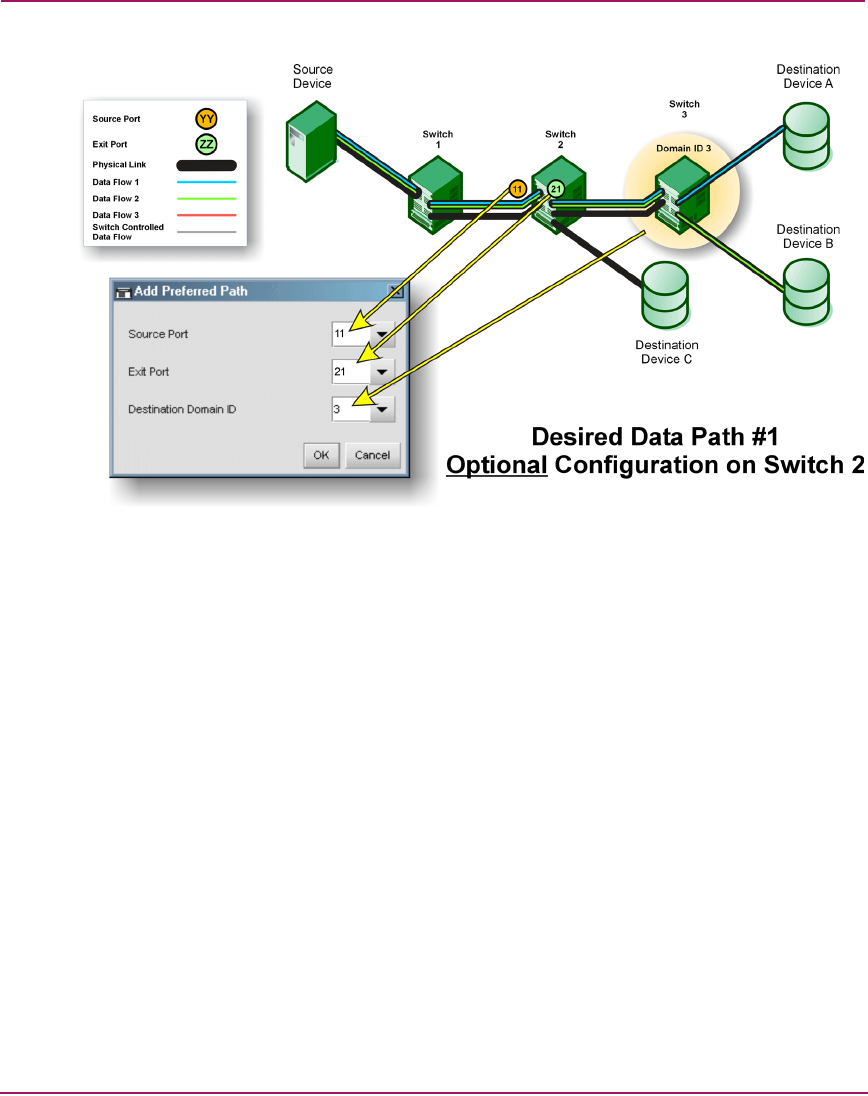

Figure 37: Specifying preferred path for switch 2
The following rules apply when configuring preferred paths:
■ The switch’s domain ID must be set to insistent.
■ Domain IDs must be in the range of 1 through 31.
■ The specified numbers for Source Ports and Exit Ports must be in the range
equal to the number of ports for the switch being configured.
■ For any source port, only one path may be defined to each destination domain
ID.
To install and enable this option, choose the Features option under the Element
Manager’s Configure menu. See “Configuring Feature Key” on page 149.
