Configuring the Director
138 Director Element Manager User Guide
— Bind Port to Attached WWN—Places a check mark in the check box for
the port where you clicked to display the menu. This binds that port to the
device currently attached to that port. The Bound WWN column will
display that device’s WWN.
— Clear All Bound WWNs—Clears all WWNs listed in the Bound WWN
column.
Configuring Ports (Open Systems Management Style)
To configure ports in Open Systems management style, use the following steps:
1. Click Configure > Ports on the Element Manager menu bar. The Configure
Ports dialog box displays, as shown in Figure 38.

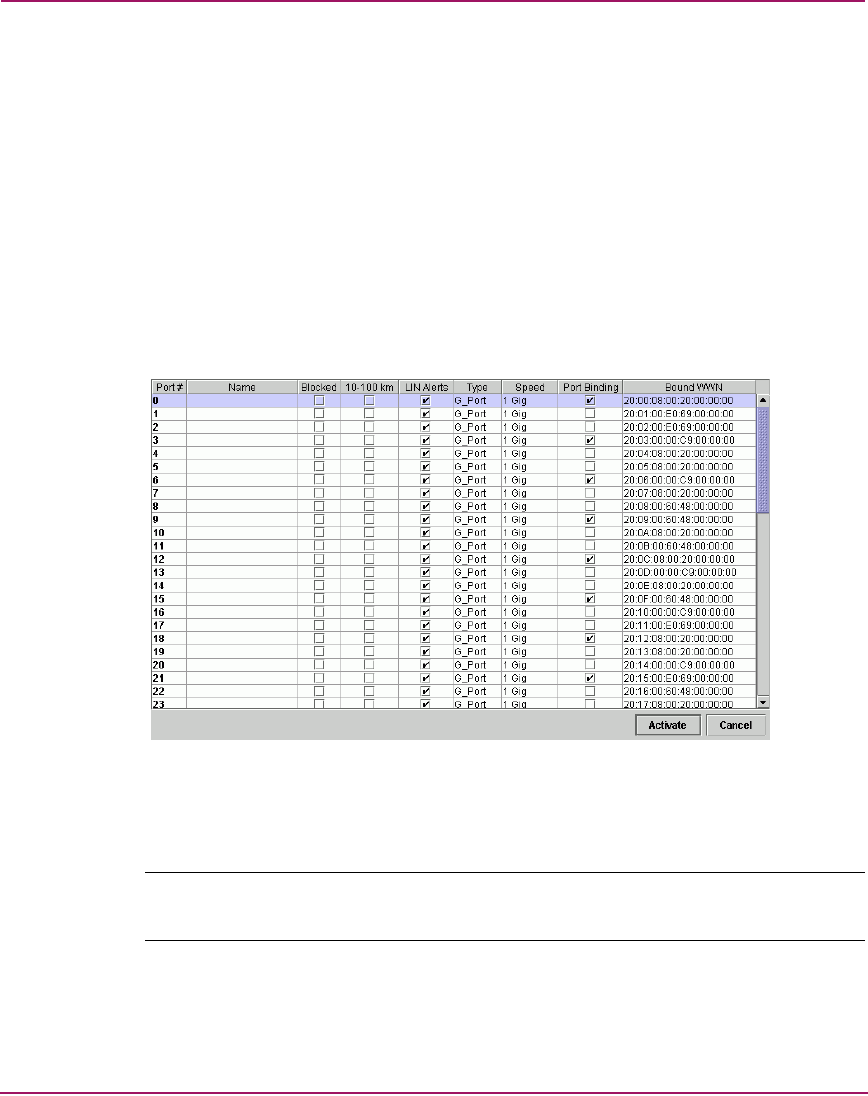

Figure 38: Configure Ports dialog box (Open Systems management style)
Ports are numbered from 0–63 on the Director 2/64, and 0–127 and 132–143
on the Director 2/140.
Note: Director 2/140, ports 128–131 are internal ports and not available for external
connections.
2. Type a name that reflects the end device connected through the port in the
Name field. For example, use XYZ Server, where XYZ is the brand name
of the server.
