Configuring Ports (FICON Management Style)
To configure ports in FICON management style, use the following steps:
Note: You cannot configure port names in the Configure Ports dialog box in FICON
management style. Use the Configure Addresses - “Active” dialog box.
1. Click Configure > Ports on the menu bar. The Configure Ports dialog box
displays, as shown in Figure 39.

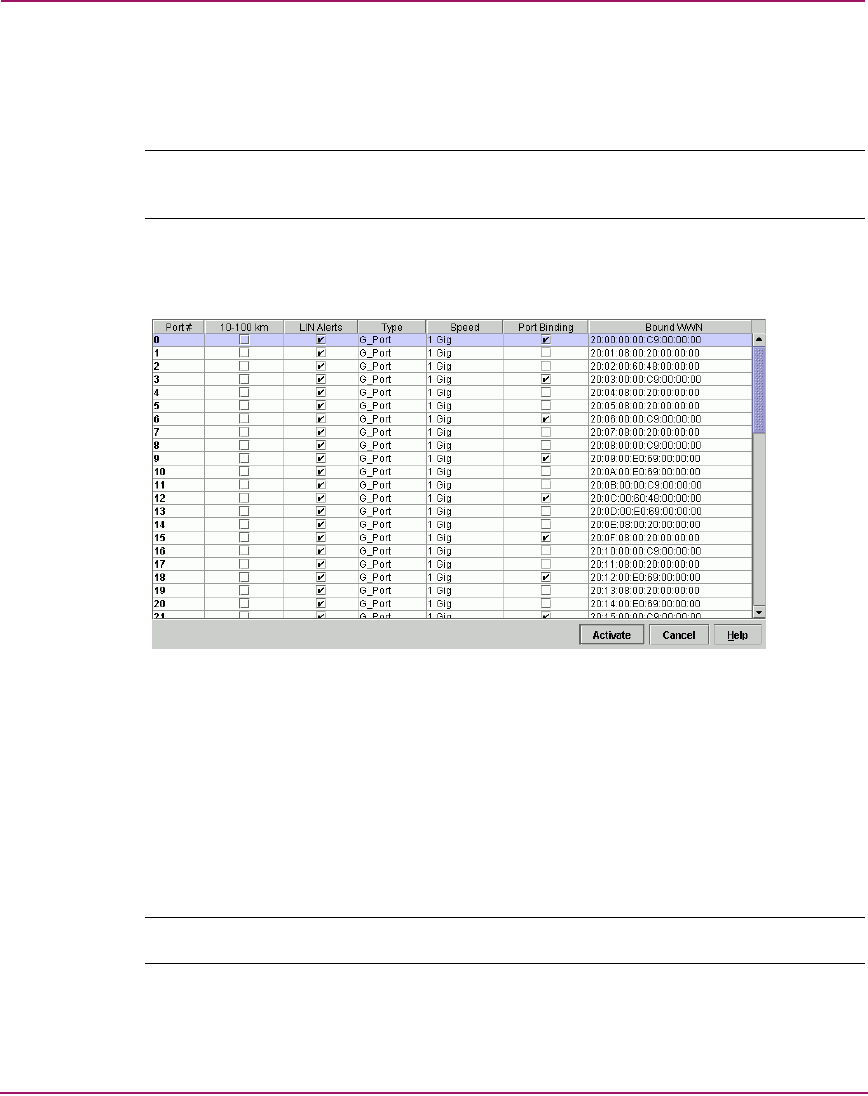

Figure 39: Configure Ports dialog box (FICON management style)
Ports are numbered from 0-63 on the Director 2/64, and 0–127 and 132–143
on the Director 2/140. Note that for the Director 2/140, ports 128–131 are
internal ports and not available for external connections.
2. Click the check box in the 10-100 km column to enable or disable extended
distance buffering for the port.
3. Click the check box in the LIN Alerts column to enable or disable LIN alerts
for the port.
Note: The factory default for LIN alerts is enabled.
4. Click the check box in the Port Binding column to prevent an unspecified
device from being connected to the port.
