Configuring the Director
144 Director Element Manager User Guide
Configure Port Addresses Procedure
To configure, save, and activate port addresses, use the following steps:
1. Click Configure > Addresses on the menu bar, then click Active. The
Configure Addresses - “Active” dialog box displays.

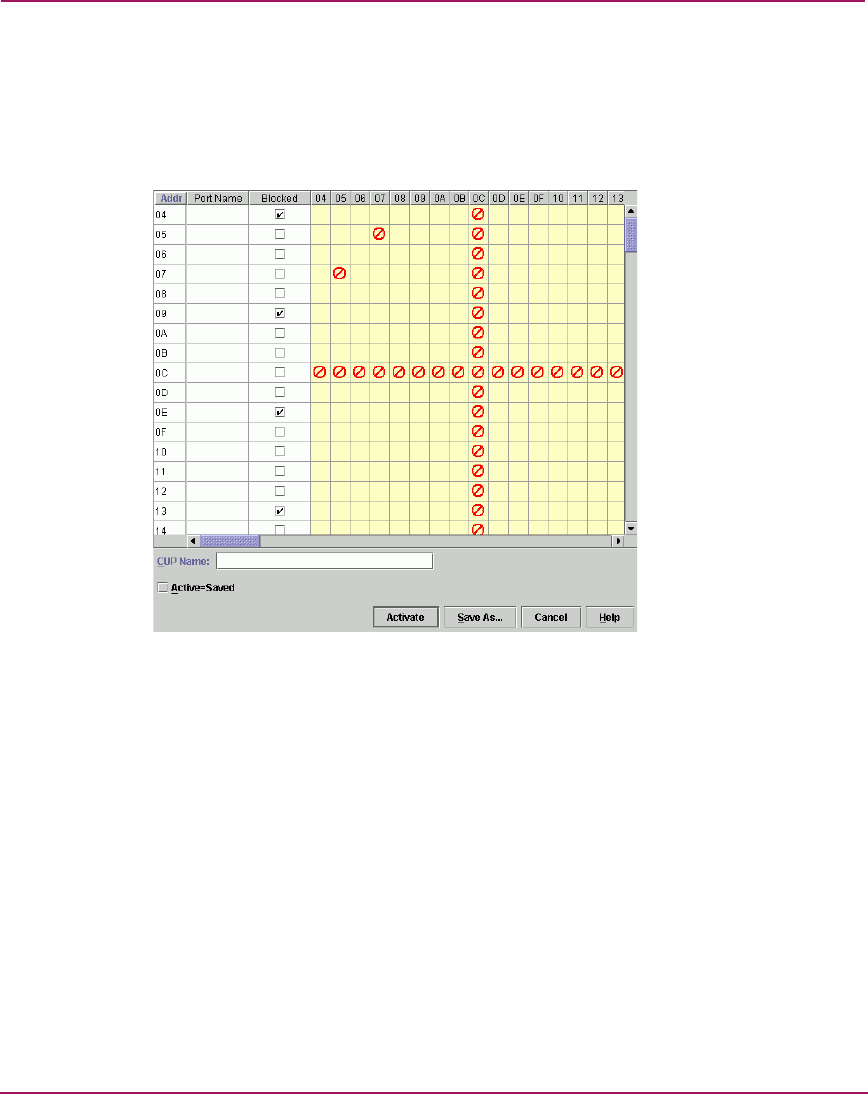

Figure 41: Configure Addresses - “Active” dialog box
2. Enter information into the appropriate fields.
3. Click the squares to either prohibit or allow connections.
In Figure 41, port address 07 is prohibited from communicating with port
address 05. Also, Port OC is prohibited from communicating with all other
port addresses.
4. Click Save As to open the Save Address Configuration As dialog box.
5. Click the Port Name field and enter a name.
Names must be between 1 and 8 characters in length. Valid characters are
uppercase A–Z, 0–9, hyphen (-), and underscore (_). The name may not be
CON, AUX, COMn (where n=1-9), LPTn (where n=1-9), NUL, or PRN.
Descriptions must be between 0 and 24 characters in length. Up to 24
alphanumeric characters allowed, including spaces, hyphens, and
underscores.
