Configuring the Director
148 Director Element Manager User Guide
b. Click the check box in the Write Authorization column to enable or
disable write authorization for the trap recipient (default is disabled). A
check mark in the box indicates write authorization is enabled. When the
feature is enabled, a management workstation user can change the HAFM
appliance’s sysContact, sysName, and sysLocation SNMP variables.
c. Type the IP address or DNS host name of the trap recipient (SNMP
management workstation) in the associated Trap Recipient field. Use 64
or fewer alphanumeric characters. Hewlett-Packard recommends using
the IP address.

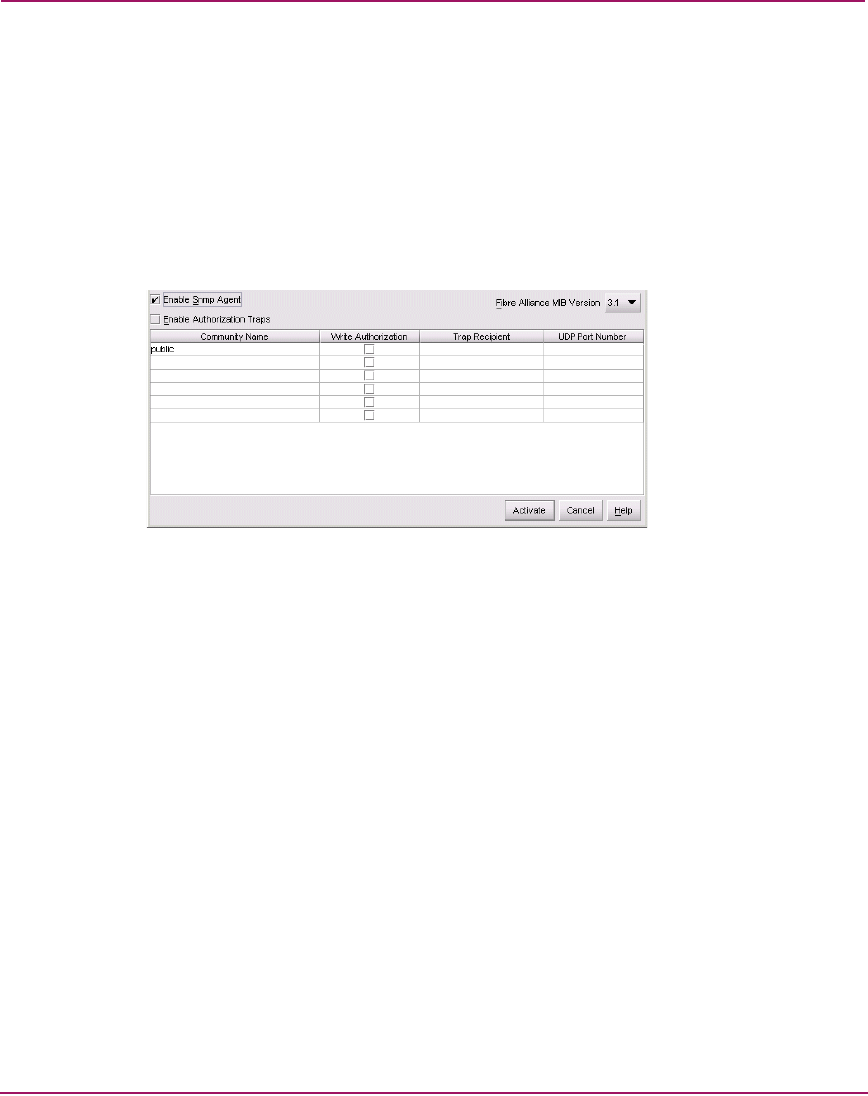

Figure 43: Configure SNMP dialog box
d. Type a decimal user datagram protocol (UDP) port number in the
associated UDP Port Number field. (This number is commonly 162.)
2. Click the Enable Snmp Agent check box to enable the agent on this director.
3. Click the Enable Authorization Traps check box to enable authorization trap
messages to be sent to SNMP management stations when unauthorized
stations try to access SNMP information from the director.
4. Click the Fibre Alliance MIB Version drop-down list to choose the Fibre
Alliance MIB version supported on the director.
5. Click Activate to save the information and close the dialog box.
6. If you are finished configuring the director, back up the configuration data.
For more information, see “Backup and Restore Configuration” on page 186.
