Configuring the Director
159Director Element Manager User Guide

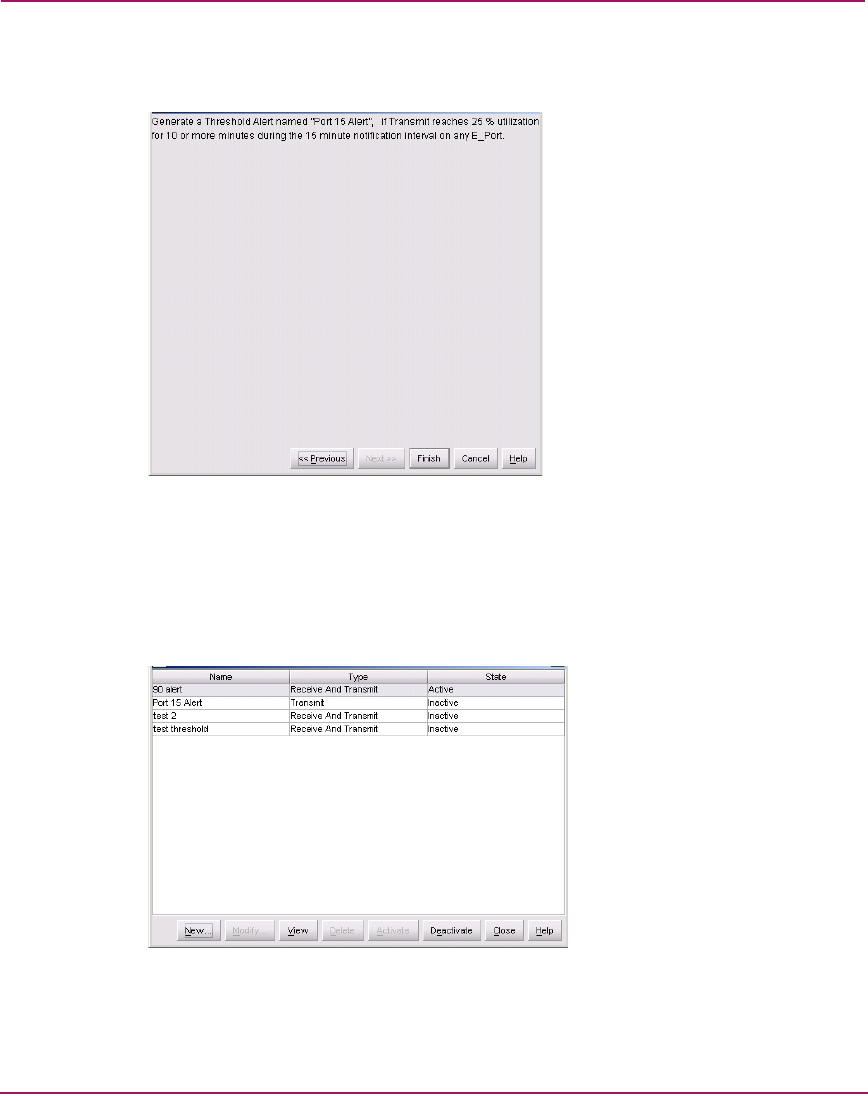

11. Click Next. A final screen displays to provide a summary of your alert
configuration, as shown in Figure 53.
Figure 53: New Threshold Alerts dialog box - summary screen
12. Click Finish. The Configure Threshold Alerts dialog box displays listing the
name, type, and state of the alert that you just configured.
13. At this point, the alert is not active. To activate the alert, choose the alert
information that displays in the Configure Threshold Alerts table and click
Activate. The alert is activated, as shown in Figure 54.
Figure 54: Configure Threshold Alerts dialog box - alert activated
