Exporting the Configuration Report
Use this option to save an ASCII file of configuration data currently saved in
director NV-RAM to your hard drive or a diskette. Use any desktop publishing
application to import this ASCII file for viewing or printing.
Note: This file cannot be used to set configuration parameters through the Element
Manager.
Data in the file includes:
■ Product identification—Data from the Configure Identification dialog box.
■ Operating parameters—Data from the Operating Parameters dialog box.
■ Port parameters—Data from the Configure Ports dialog box.
■ SNMP parameters—Data from the Configure SNMP dialog box.
■ Active zoning configuration—This specifies the active zone and zone
members, if set, and whether the default zone is enabled or disabled.
To export a configuration report:
1. Click Configure > Export Configuration Report. The Export Configuration
Report dialog box displays, as shown in Figure 55.

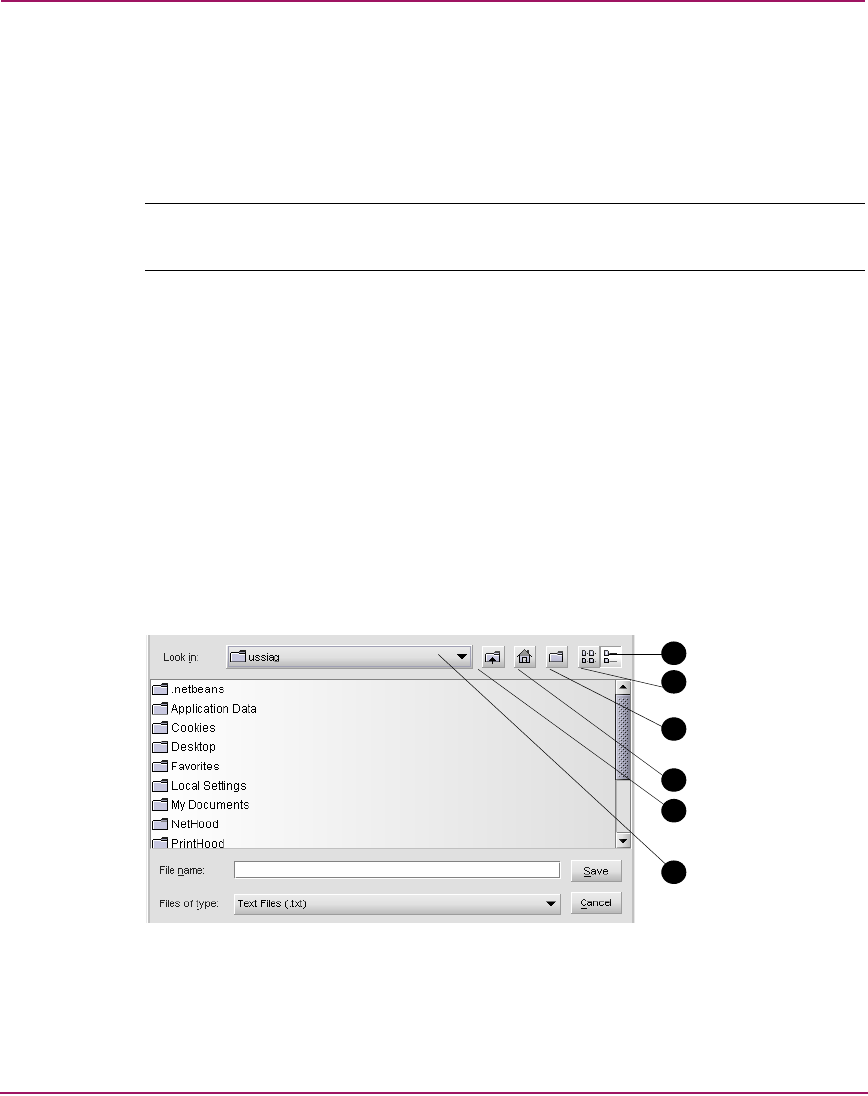

Figure 55: Export Configuration Report dialog box
1 Details
2 List
3 Create new folder
4 Home
5 Go up one level
6 Drive list
1
4
2
3
5
6
