Using Logs
168 Director Element Manager User Guide
Audit Log
The Audit Log displays a history of all configuration changes applied to the
director from any source such as HAFM, SNMP management stations, or host.

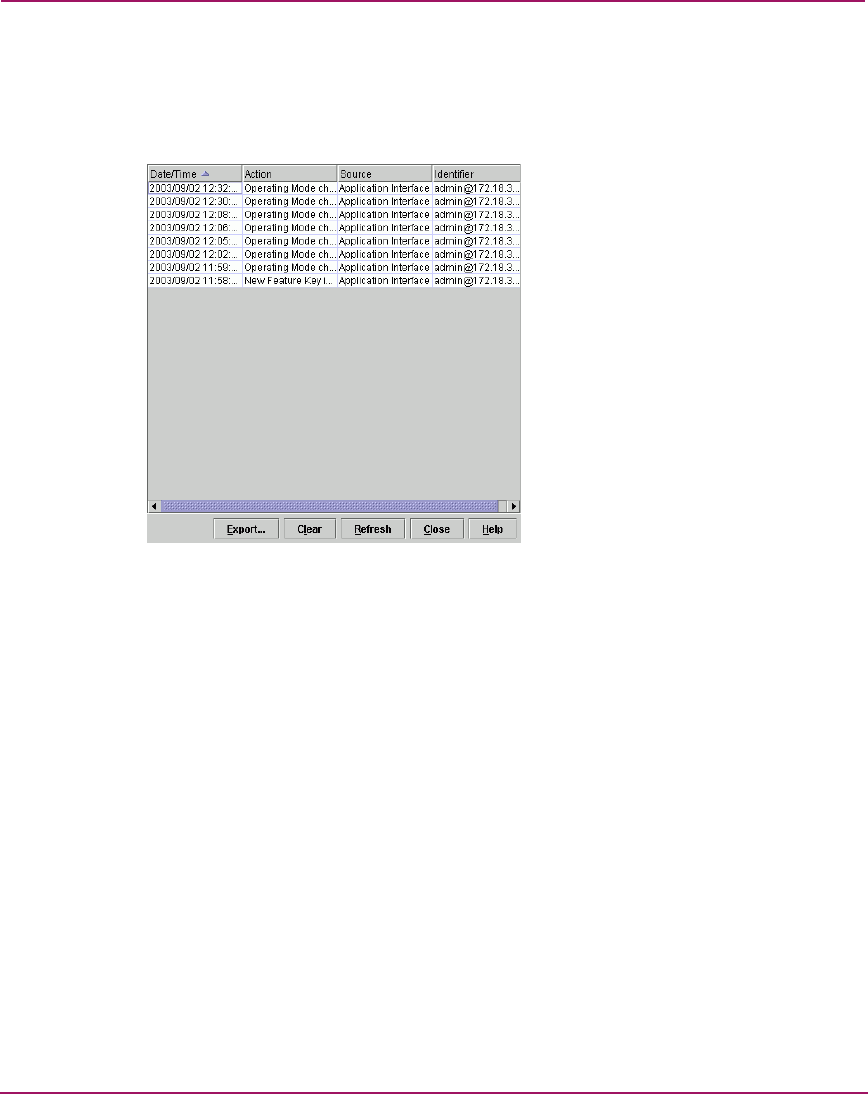

Figure 57: Audit Log
Some actions, such as backing up configuration data and enabling automatic
date/time synchronization, are performed only by the HAFM appliance
without director interaction. These actions are indicated when HAFM
displays in the Source column, as shown in Figure 57. If HAFM does not
display, the time stamp is from the director.
■ Date/Time—The date and time of the change on the director.
■ Action—User action that caused the configuration change, such as offline
status, port name change, or change of address.
■ Source—Identifies the user making the change through the Director Element
Manager and IP or DNS host name address of the remote user’s workstation.
— Maintenance Port—Change was made by a user connected to the
maintenance port.
— HAFM application—Change was made by an Element Manager
user.
— SNMP—Change was made by a remote SNMP management station.
