Using Logs
173Director Element Manager User Guide
Hardware Log
The Hardware Log displays information on FRUs inserted and removed from the
director.

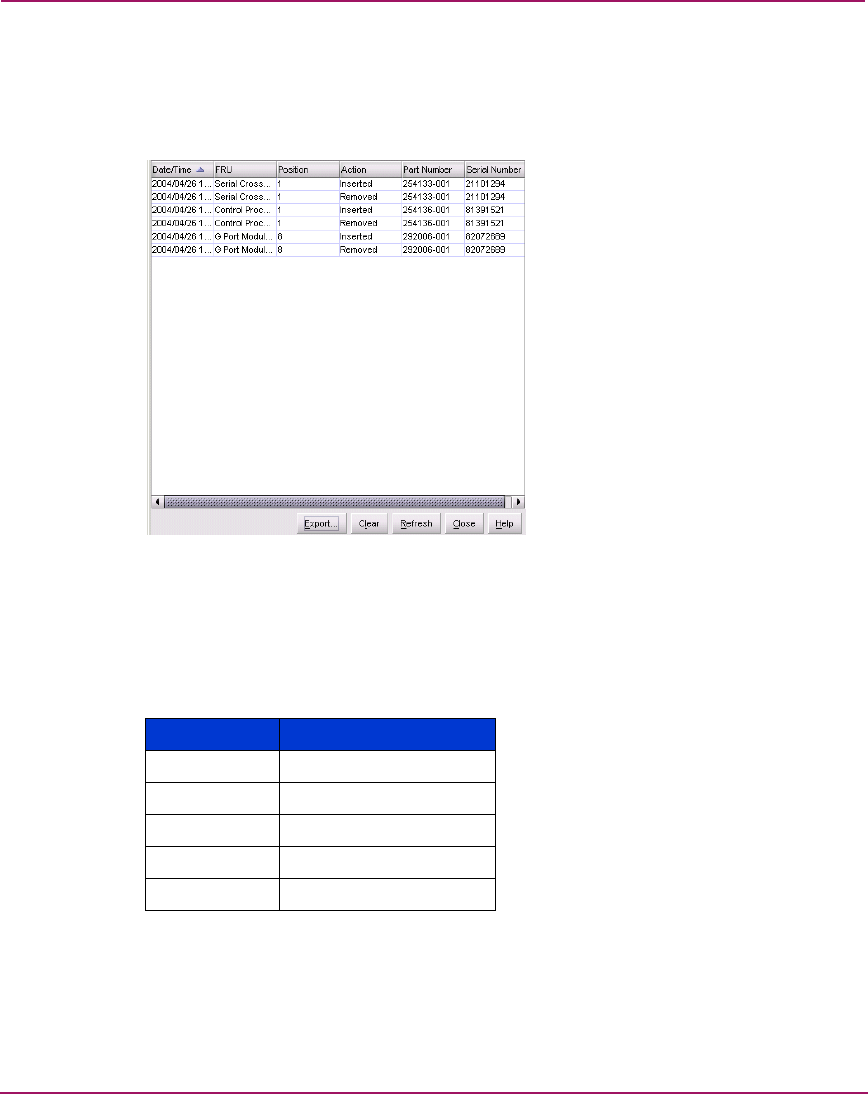

Figure 59: Hardware Log
Each log entry includes the following:
■ Date/Time—Date and time of the insertion or removal of the FRU
■ FRU—The name of the inserted or removed FRU
The following acronyms may display in this column for the port card:
— GLSL—G_Port, long wave, single mode LC connector, 1 Gigabit
— GSML—G_Port, short wave, multimode, LC connector, 1 Gigabit
Table 6: FRU names
FRU Code FRU Name
FAN Fan module
PWR Power supply module
CTP Control processor
SBAR SBAR card
BKPLNE Backplane
