Optional Features
202 Director Element Manager User Guide

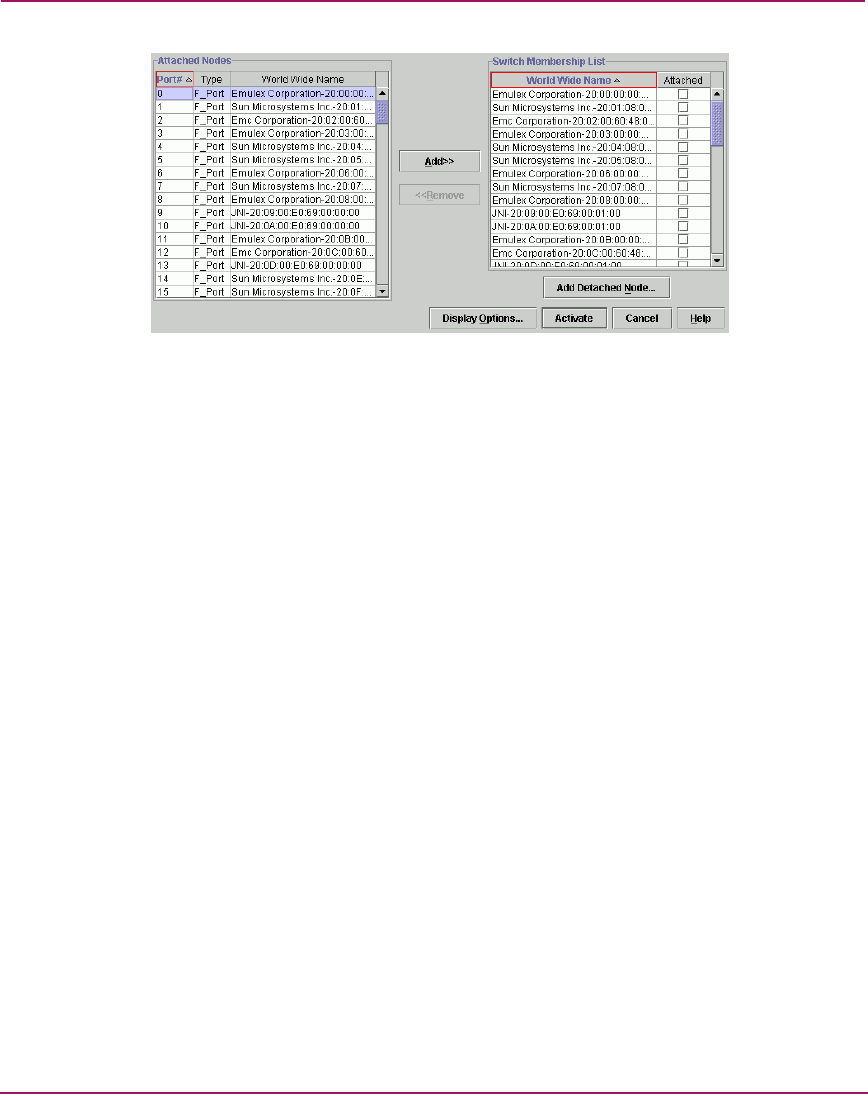

Figure 67: Switch Binding Membership List dialog box
See “Switch Binding” on page 199 for information on how the Switch
Membership List is populated with WWNs according to options set in the
Switch Binding State Change dialog box.
2. If nicknames are configured for WWNs through HAFM and you want these to
display instead of WWNs in this dialog box, click Display Options. The
Display Options dialog box displays.
3. Click Nickname, then click OK.
4. To prohibit connection to a switch port from a WWN currently in the
Membership List, click the WWN or nickname in the Membership List, then
click Remove. The WWN or nickname will move to the Node List panel.
WWNs can only be removed from the fabric if any of the following is true:
■ The switch is offline.
■ Switch Binding is disabled.
■ The switch or device with the WWN is not connected to the switch.
■ Switch Binding is not enabled for the same port type as enabled for the
Connection Policy in the Switch Binding State Change dialog box. For
example, a WWN for a switch attached to an E_Port can be removed if
the Switch Binding Connection Policy was enabled to Restrict F_Ports.
■ The switch or device with the WWN is connected to a port that is blocked.
■ The switch or device with the WWN is not currently connected to the
switch (detached node).
