Overview
21Director Element Manager User Guide

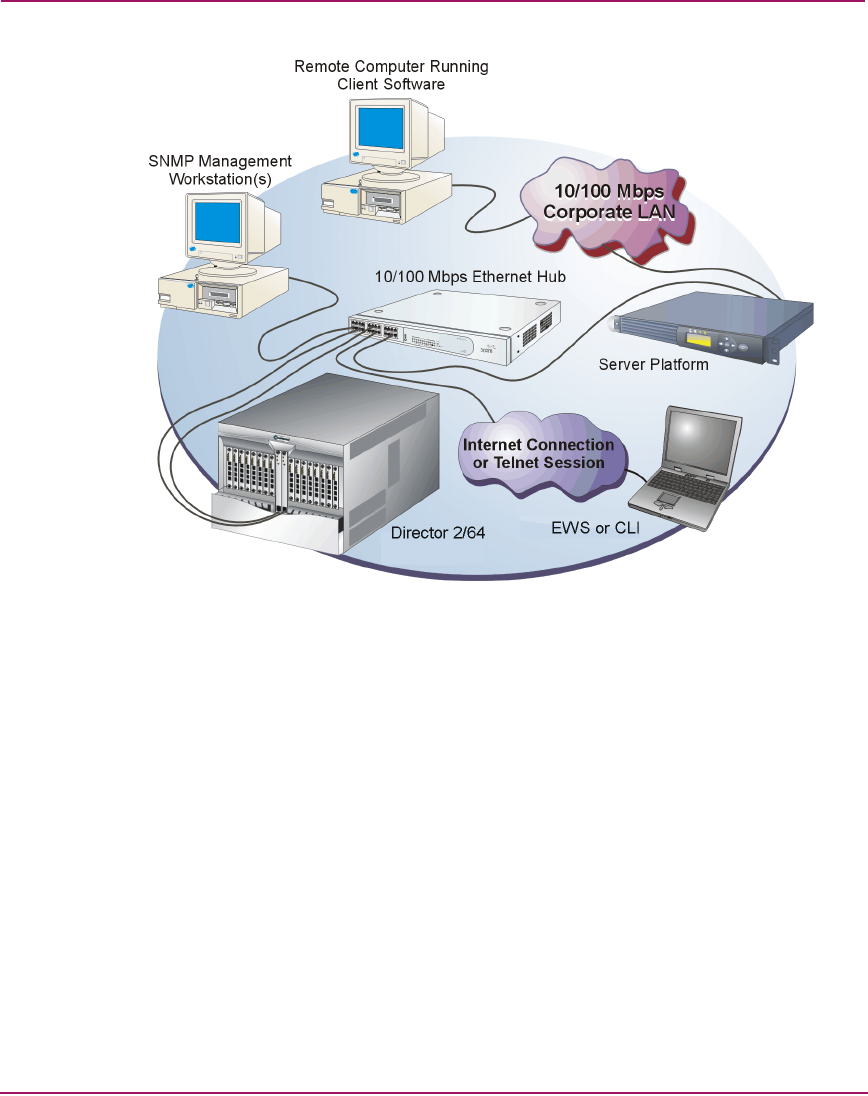

Figure 1: HAFM appliance and remote client computer configuration (dual Ethernet)
Using the Element Manager, you can:
■ Back up and restore configuration data.
■ Clear the system error indicator.
■ Configure extended distance buffering for ports.
■ Configure Fibre Channel operating parameters for the director, such as
BB_Credit, R_A_TOV, E_D_TOV, preferred domain ID, switch priority,
domain RSCNs, preferred and insistent domain ID, director speed
(Director 2/64 only), and rerouting delay.
■ Configure individual ports with a port name describing the node attached to
the port.
■ Configure keys for new features.
■ Configure link incident (LIN) alerts.
■ Configure interoperability mode for multiswitch fabrics.
■ Configure preferred paths for interswitch links (ISLs).
