Overview
25Director Element Manager User Guide
■ Right-click a director icon on the HAFM Physical/Topology Map. (See
Figure 2 on page 25.) A pop-up menu displays.
Click Element Manager.
The Element Manager window displays, showing the Hardware View for the
selected director. (See Figure 3 on page 26 or Figure 4 on page 27.)

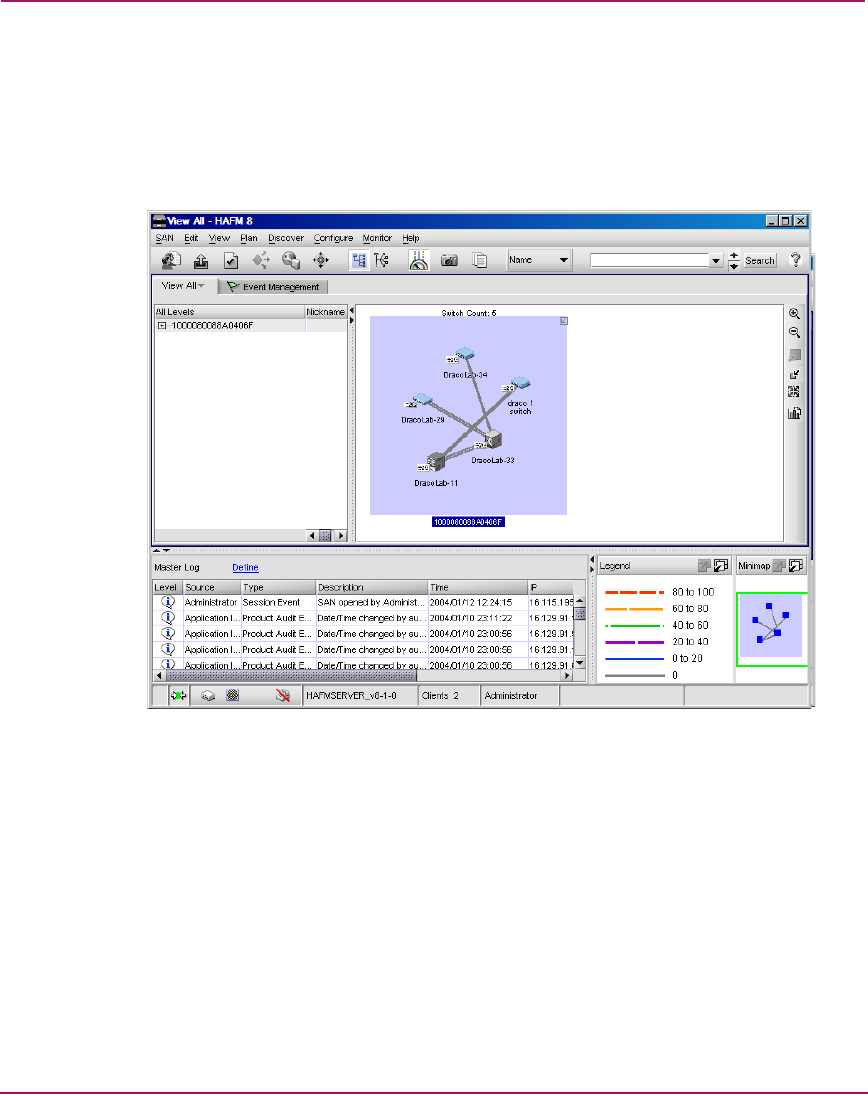

Figure 2: HAFM application desktop
1 Menu bar
2 Toolbar
3 Product list
4 Physical/Topology map
5 Master log
6 Connection utilization legend
7 Minimap
8 Status bar
9 Toolbox
1
2
3
4
5
6
7
8
9
