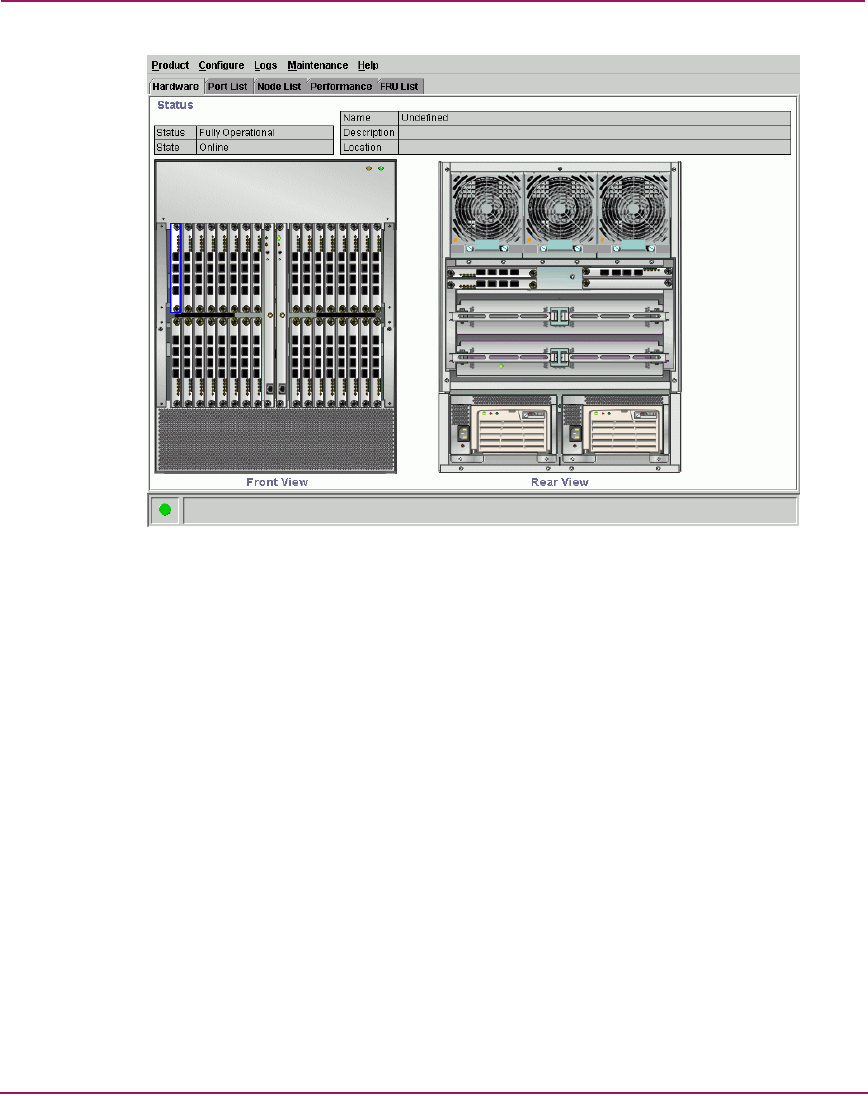

Figure 6: Director 2/140 Hardware View
In the Hardware View, colored indicators reflect the status of actual LEDs on the
director FRUs. The status bar displays a symbol to represent the most degraded
status currently reported by any of the director FRUs. For example, for a port
failure, indicated by a blinking red and yellow diamond on a port, a yellow
triangle displays on the status bar to indicate a degraded condition. However, if a
blinking red and yellow diamond displays over both SBAR cards, the status bar
displays a red and yellow diamond, which indicates a failure requiring immediate
attention. For an explanation of the different status symbols and the reasons they
display in the Hardware View or Port List View, see to “Monitoring Hardware
Operation” on page 65.
Double-click the power supply, CTP card, cooling fan module, or SBAR card to
display an FRU Properties dialog box containing detailed information on the
hardware component. Double-click the director, away from an FRU, to display the
Director Properties dialog box.
For details on navigating and monitoring via the Hardware View, see “Monitoring
and managing the Director” on page 61.
