Overview
45Director Element Manager User Guide

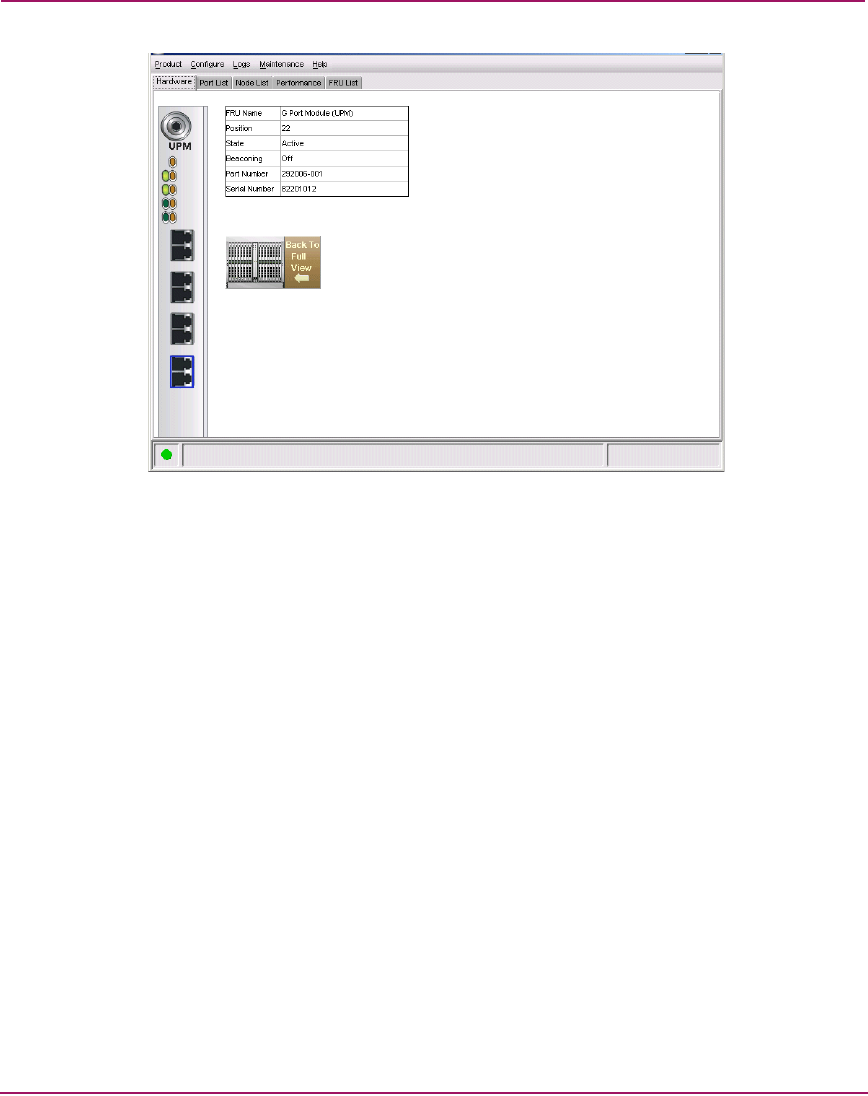

Figure 7: Port Card View
In this expanded view of the port card, you can:
■ Determine the port card status by viewing the amber LED at the top of the
card. Identify the FRU name, position, operating state, beaconing state, and
part number of the port from the table shown in this view.
■ Determine port status and operation by the status symbols that display next to
the port connectors and simulated LED indicators above the connectors.
■ Right-click the port card to display a pop-up menu with these options: Block
All Ports, Unblock All Ports, and Diagnostics.
■ Right-click the port connector to display a menu with these options: Port
Properties, Node Properties, Port Technology, Block Port, Enable
Beaconing, Diagnostics, Channel Wrap (FICON management style only),
Swap Ports (FICON management style only), Clear Link Incident Alert(s),
Reset Port, Port Binding, and Clear Threshold Alert(s).
These options also display when you click a port connector and choose
Product > Port.
