Overview
46 Director Element Manager User Guide
■ Double-click a port connector to display the Port Properties dialog box.
■ Return to the Hardware View by clicking Back to Full View.
See “Port Card View” on page 78 for detailed information on this view.
Port List View
To display the Port List View, click the Port List view tab. A table, as shown in
Figure 8, displays in the View panel. This table includes the port number, port
name, port address (FICON management style only), the block/unblock
configuration, operating state, port type of the selected port.

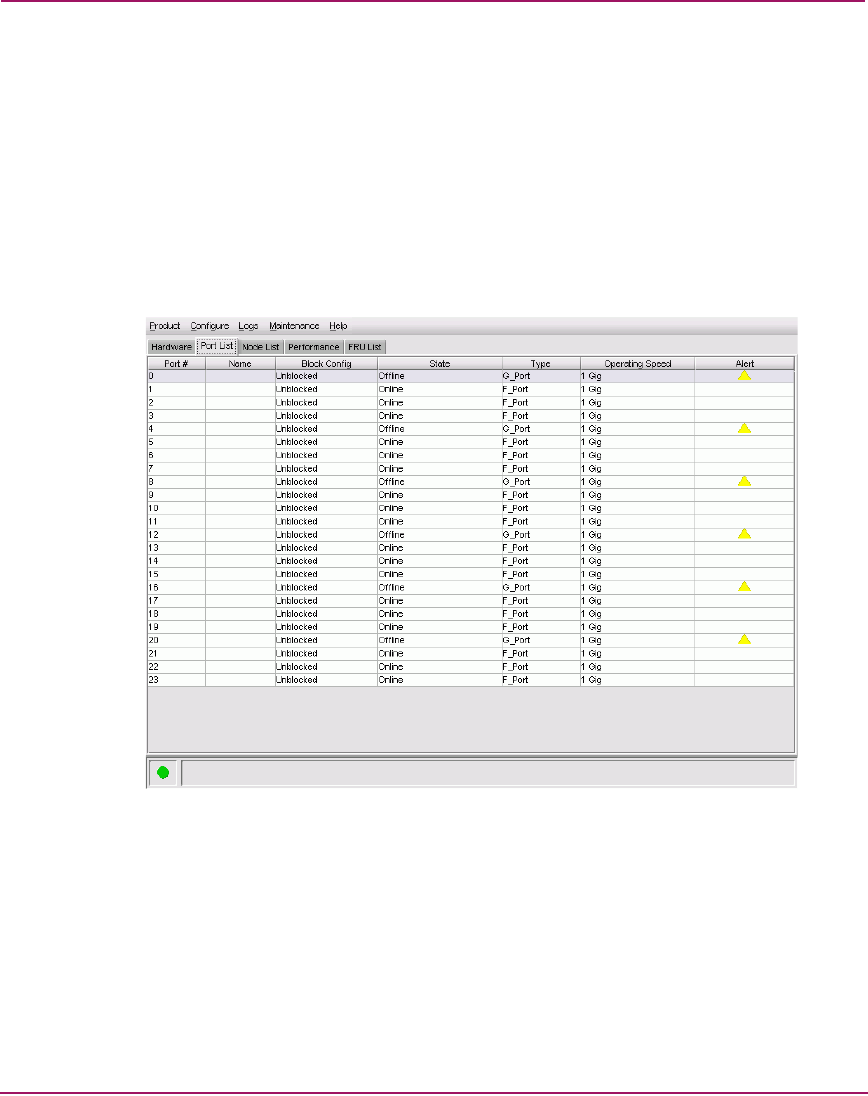

Figure 8: Port List View
The Port List View displays information about all ports installed in the director.
All data is dynamic and updates automatically. Double-click any row in this view
to display the Port Properties dialog box for the port.
Right-click a port row to display the same menu options that display when you
right-click a port in the Port Card View or a port’s bar graph in the Performance
View. These include:
■ Port Properties
■ Node Properties
