Monitoring and managing the Director
71Director Element Manager User Guide
Displaying Director Information
Double-click the director illustration, away from a hardware component, to

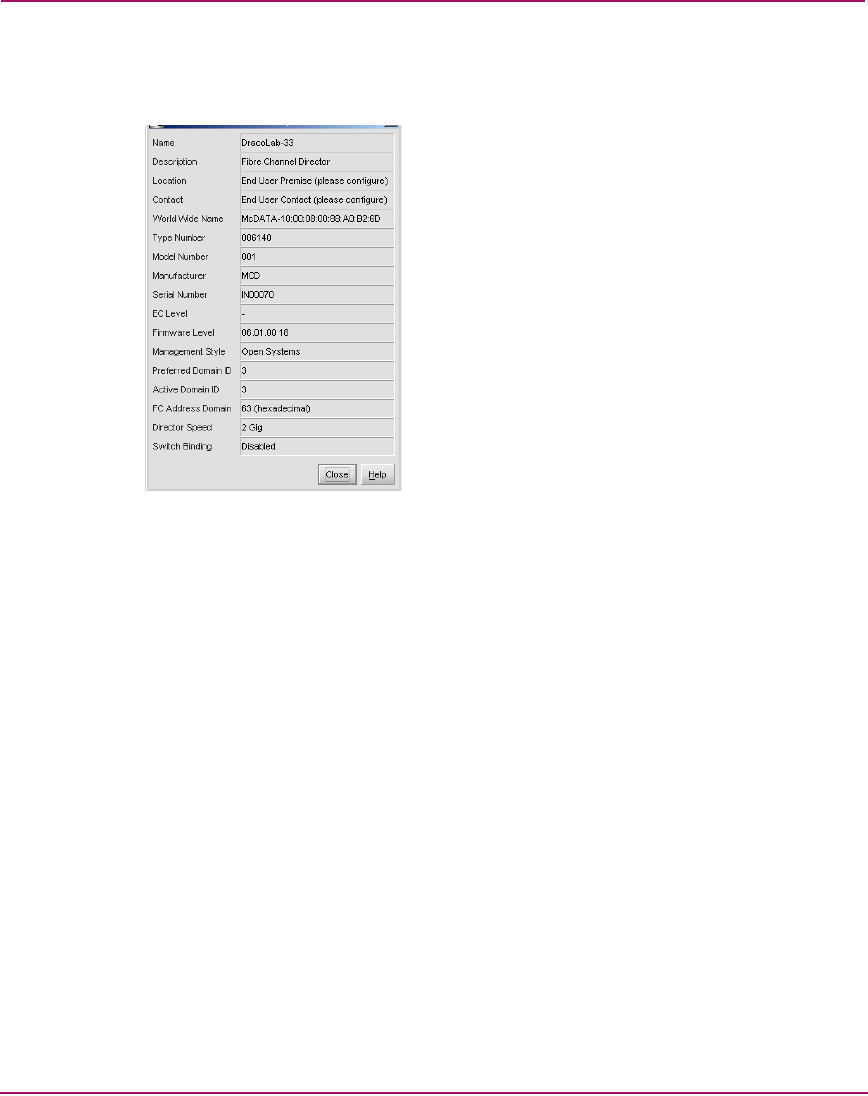

Figure 16: Director Properties dialog box
The following information displays in this dialog box:
■ Director name, description, location, and contact configured through the
Configure Identification dialog box.
■ Fibre Channel World Wide Name (WWN) identifier for the director.
■ Type Number.
■ Model Number.
■ Manufacturer.
■ Serial Number.
■ Engineering change (EC) Level.
■ Firmware Level.
■ Management Style—Open Systems or FICON management style.
■ Preferred Domain ID—This is set through the Configure Switch Parameters
dialog box.
■ Active Domain ID—The actual domain ID assigned to the director.
■ FC Address Domain—The director’s Fibre Channel address (hexadecimal)
