Port List View
Display the Port List View as shown in Figure 26 in the View panel by choosing
the Port List option from the view tabs.

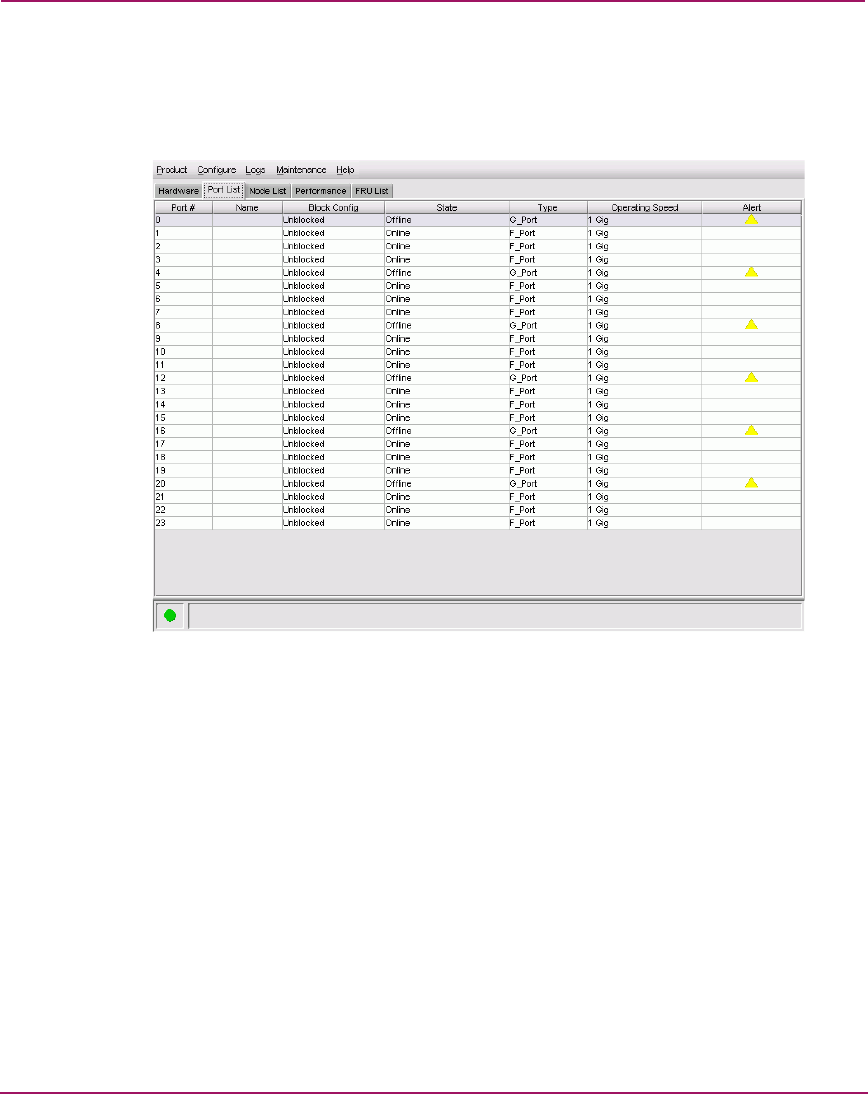

Figure 26: Port List View
The Port List View displays the following information on all ports that can be
installed in the director. All information is updated automatically.
■ #—The physical port number, from 0–63 on the Director 2/64 and 0–127 and
132–143 on the Director 2/140. Note that for this director, ports 128–131 are
internal ports and not available for external connections.
■ Addr (FICON management style only)—Displays the logical address of the
port, which is the port number in hexadecimal format. For example, the
address for port 0 is 4 (0+4). If port addresses have been swapped, those
addresses will be followed by an asterisk (*).
■ Name—Displays the port name as configured through the Configure Ports
dialog box.
