Task 8: Configure Management Server Information
2-33
Installation Tasks

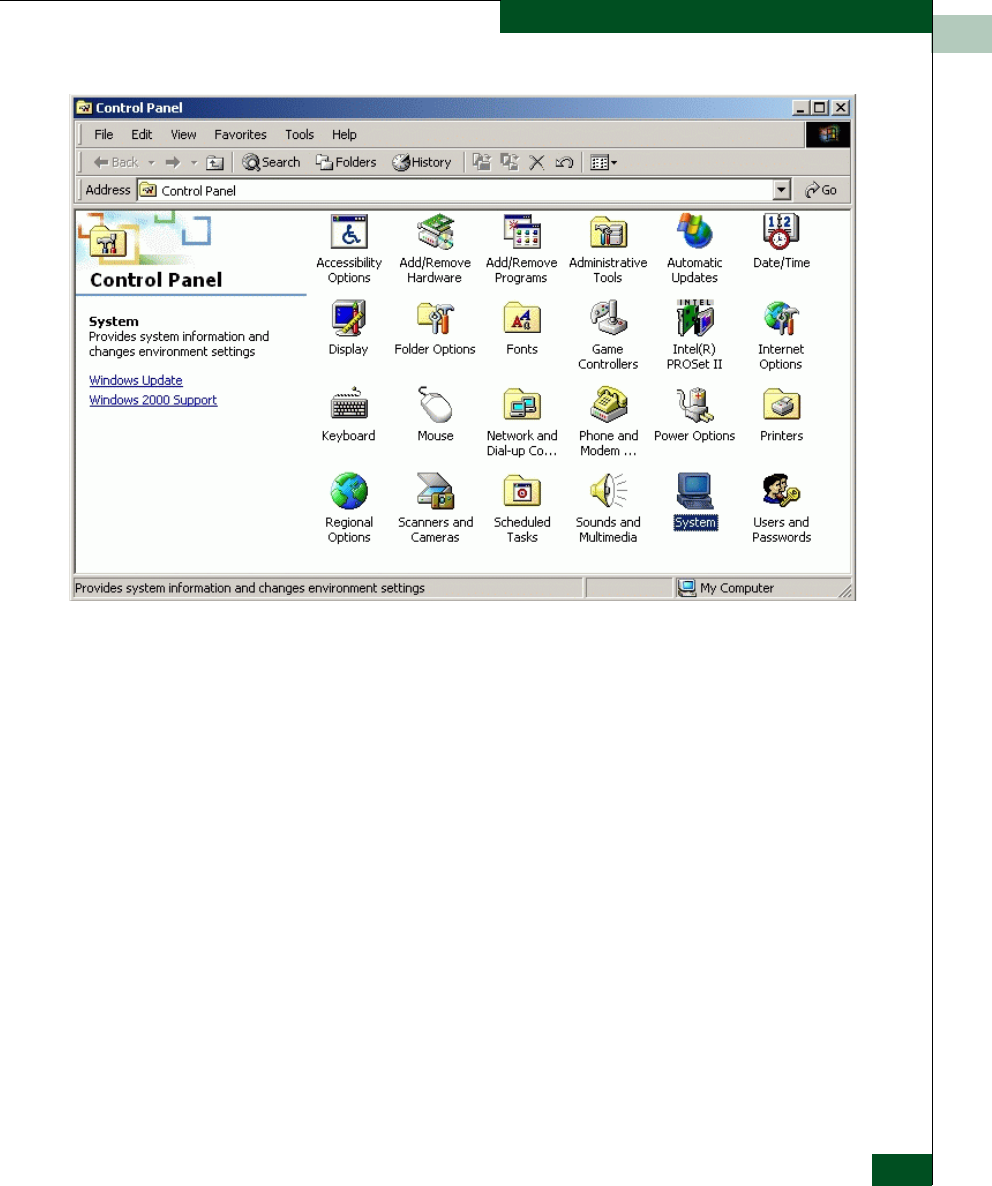

Figure 2-30 Control Panel Window
2. Double-click the System icon. The System Properties dialog box
displays with the General tab selected as the default.
3. Click the Network Identification tab. The System Properties dialog
box displays with the Network Identification tab selected
(Figure 2-31 on page 2-34).
